Wessex AF Series ATV Flail Mower

Wessex AFE Estate ATV Flail Mower

• Models: AFE-120 / AFE-160
• Working widths: 1.20 m and 1.60 m
• Overall width with side wheels: 2.05 m and 2.45 m
• Overall width with rear wheels: 1.55 m and 1.95 m
• Cutting height range: 20 to 205 mm
• Approximate weights: 260 kg and 300 kg
• Y-shape flail blades fitted
• Number of blades: 32 and 42
• Rotor shaft diameter: 114 mm
• Swinglock axle fitted
• Drive system: LockTorque lever clutch
• Number of belts: 3
• Engine power: 13 hp
• Engine start: recoil start

Wessex AFX Professional ATV Flail Mower

• Models: AFX-120 / AFX-160
• Working widths: 1.20 m and 1.60 m
• Overall width with side wheels: 2.05 m and 2.45 m
• Overall width with rear wheels: 1.55 m and 1.95 m
• Cutting height range: 20 to 205 mm
• Approximate weights: 280 kg and 320 kg
• Y-shape flail blades fitted
• Number of blades: 32 and 42
• Rotor shaft diameter: 114 mm
• Swinglock axle fitted
• Drive system: LockTorque lever clutch system
• Number of belts: 3
• Engine power: 18 hp
• Engine start: electric start

Wessex AFR Contractor ATV Flail Mower

• Models: AFR-120 / AFR-160
• Working widths: 1.20 m and 1.60 m
• Overall width with side wheels: 2.05 m and 2.45 m
• Overall width with rear wheels: 1.55 m and 1.95 m
• Cutting height range: 20 to 205 mm
• Approximate weights: 300 kg and 340 kg
• Heavy duty hammer blades fitted
• Number of blades: 16 and 22
• Rotor shaft diameter: 114 mm
• Swinglock axle fitted
• Drive system: LockTorque lever clutch system
• Number of belts: 3
• Engine power: 23 hp
• Engine start: electric start

AFE Estate: The AFE flail mower with a 13hp V-Twin B&S engine and LOCKTORQUE manual clutch has been designed for cutting longgrass and vegetation in private grounds, estates, and for less demanding professional applications.

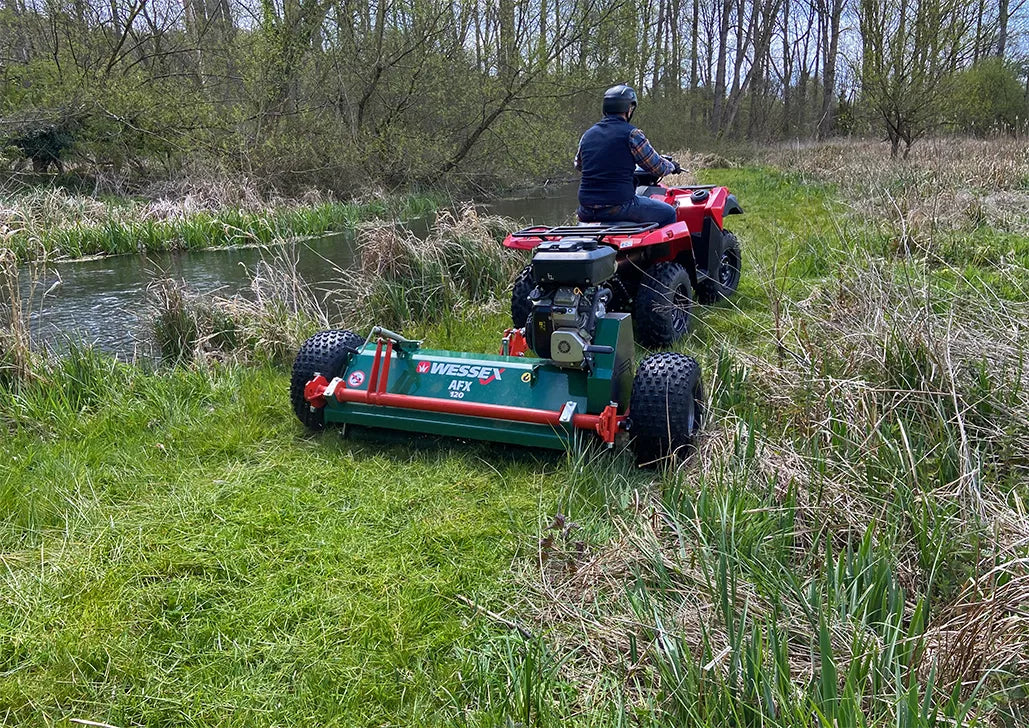

AFX Professional: Designed for use in professional applications, the AFX has an 18hp V-Twin B&S engine LOCKTORQUE manual clutch with 3 belts to allow the mower to perform in arduous conditions.

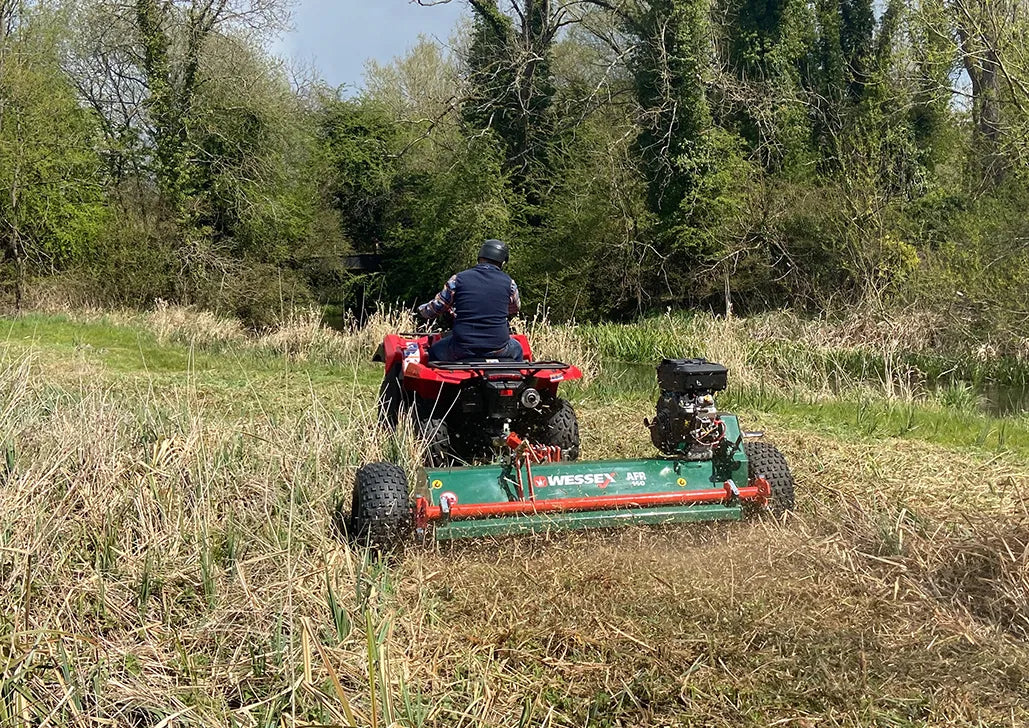

AFR Contractor: Complete with a 23hp V-Twin B&S engine with electric start, LOCKTORQUE manual clutch and forged heavy-duty flails, the AFR will pulverise the densest scrub and vegetation with ease all day long.

Key Features:

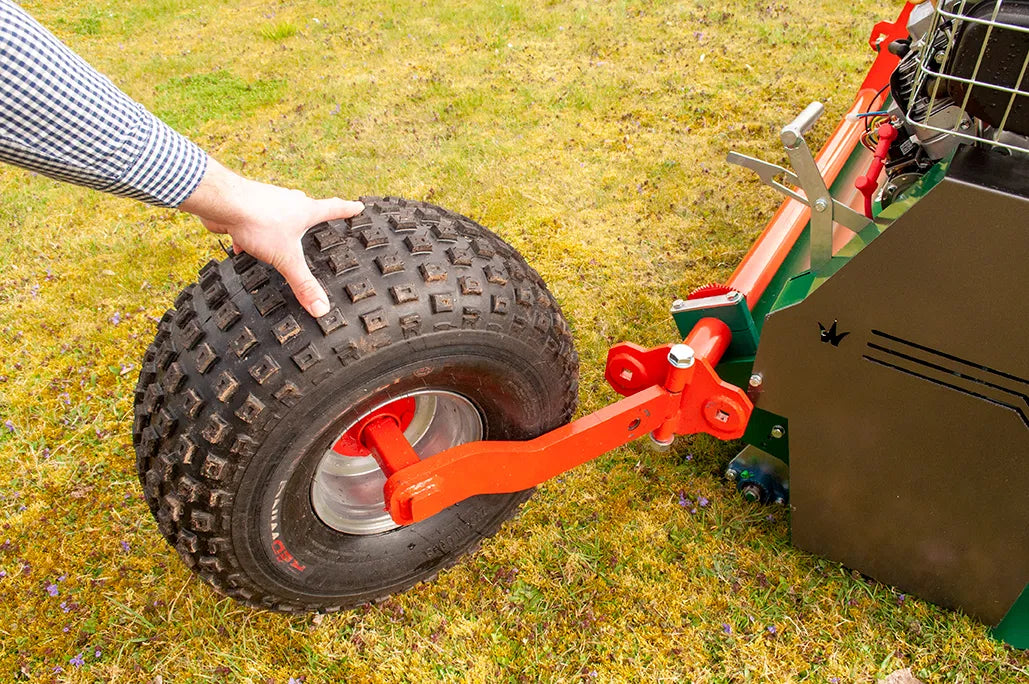

• Swinglock Axle System - Within minutes (and no further
  equipment or tools required), you can convert your typical side-wheeled ATV Flail Mower into a rear-wheeled allowing for improved versatility across different terrain.
• Tough, puncture-resistant tyres - Flotation puncture-resistant, Kevlar-lined tyres for long working life.
• Large diameter with spiral-positioned flails - Ensures an
  even cut and increased torque for dense vegetation.
• 5mm deck - shot-blasted and powder-coated for durability.
• Swivelling ball hitch - satisfies health and safety recommendations.
• Turnbuckle on the drawbar - levels the machine for an even cut.
• The drawbar can be offset to either side - cut outside of the quad wheels.
• Kill switch clips to the rack of the ATV - emergency stop within easy reach of the operator.
• Screw adjustor - simple height adjustment.
• Rear anti-scalp roller - Eliminates scalping in rough conditions.
• Powerful Briggs & Stratton (B&S) Engine.

Blades or Hammers?

Flail Blades: Best for cutting lighter vegetation, grass, and small brush, flail blades provide a clean, finer cut, making them ideal for maintaining lawns, paddocks, and pastures.

Flail Hammers: Designed for tackling tougher vegetation, thick brush, and small branches, flail hammers deliver a more forceful impact, making them the better choice for rough terrain, overgrown areas, and heavier-duty applications.

Tail Lift Delivery: Ideal for locations without unloading equipment, as the tail lift allows safe ground-level delivery.

Warranty: All Wessex attachments come with a standard one year warranty, with an additional one year free of cost by registering on the Wessex website. For more details, call us on 01673 828965.

Wessex International® is a leading British manufacturer of grassland and grounds maintenance machinery, supplying robust, high-performance equipment to agriculture, estates, equestrian centres and professional turf managers. Based in the United Kingdom, Wessex has built a strong reputation for engineering reliability, practical design and long-term durability across both domestic and international markets.

Beckside Machinery is an official supplier of Wessex International® machinery and holds a selection of equipment in stock, with expert support available to help you choose the right machinery for your needs.
