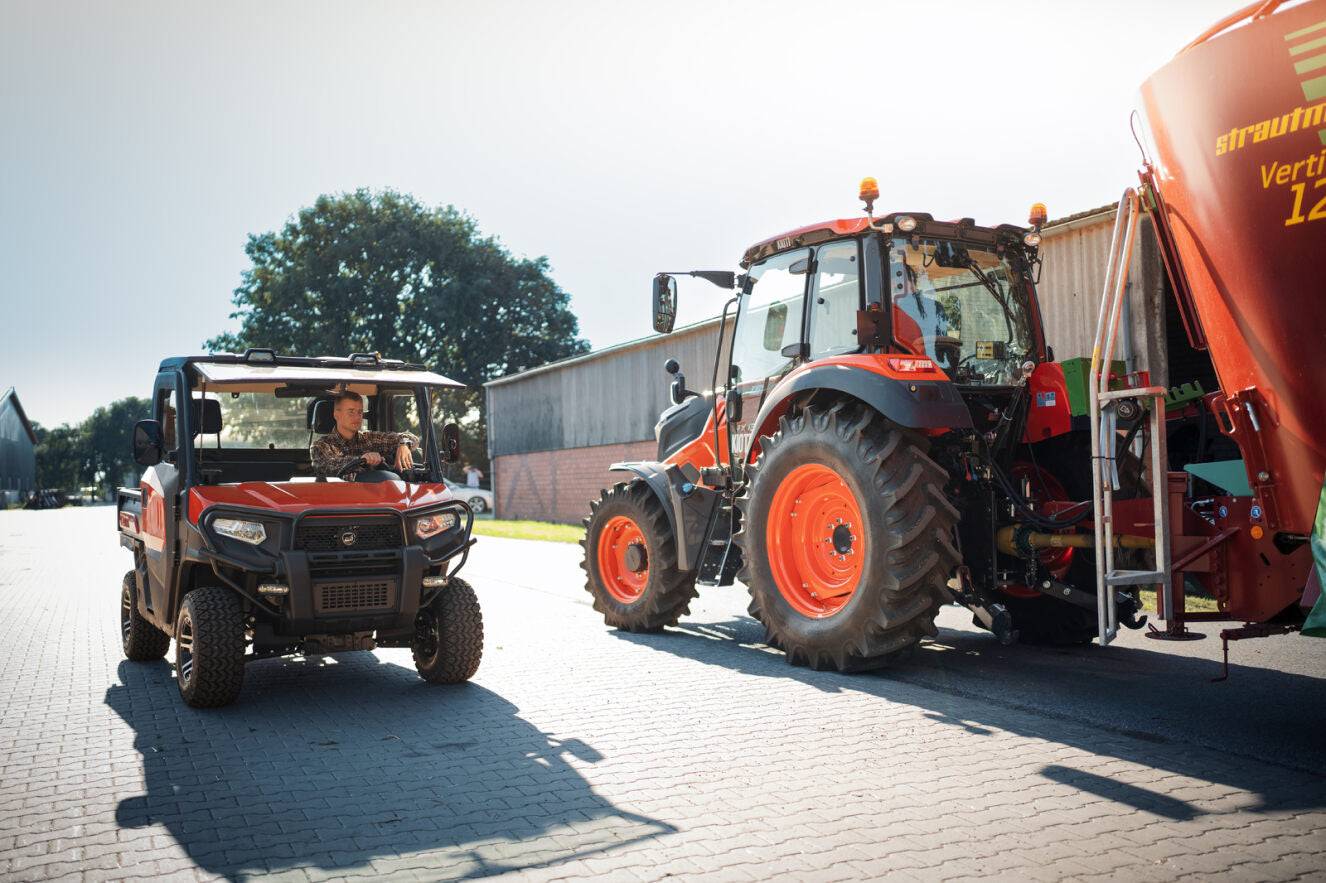

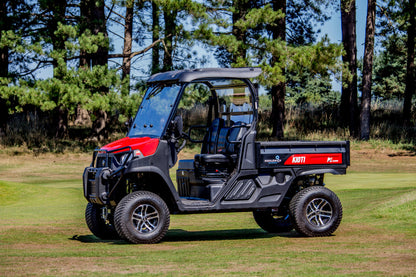

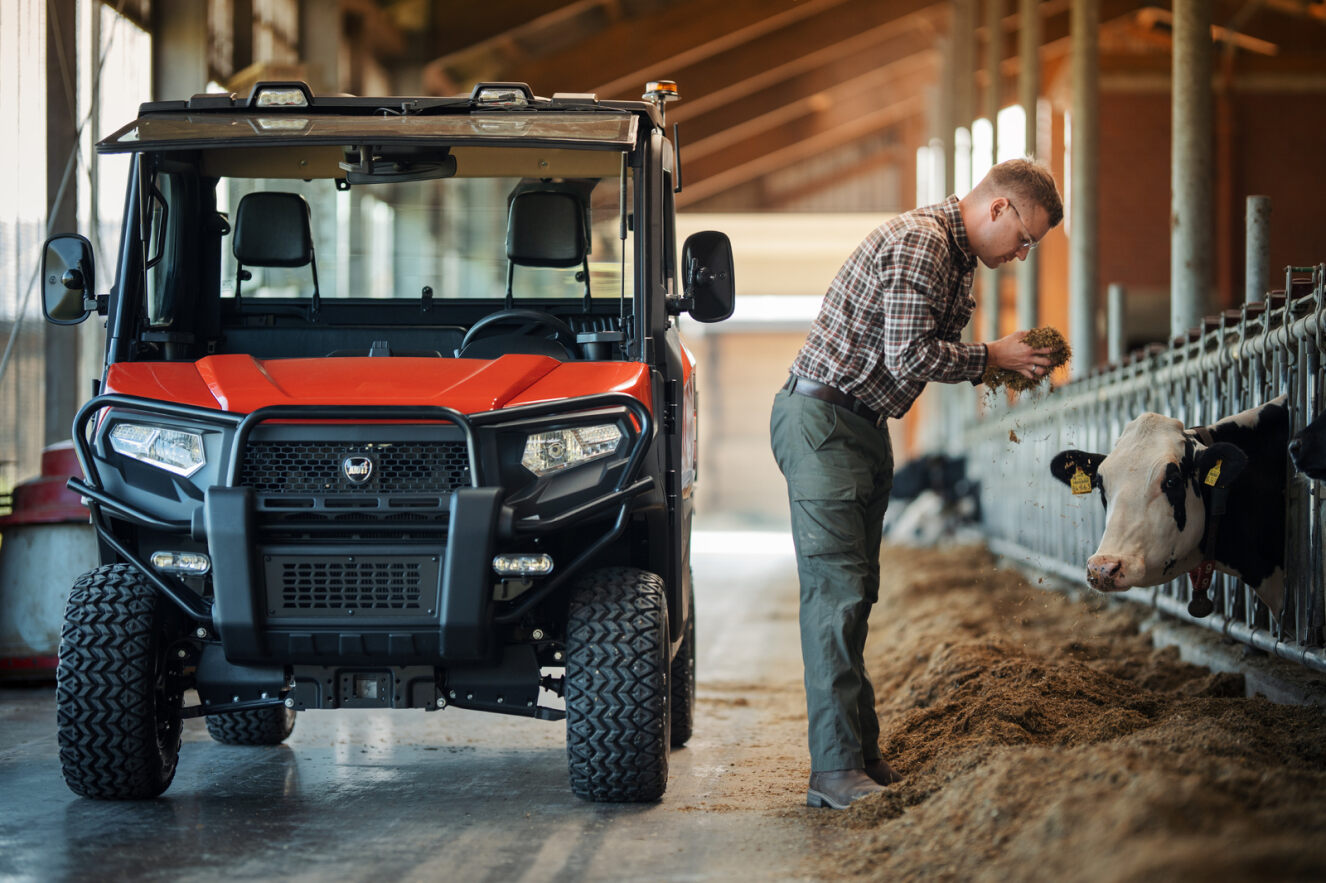

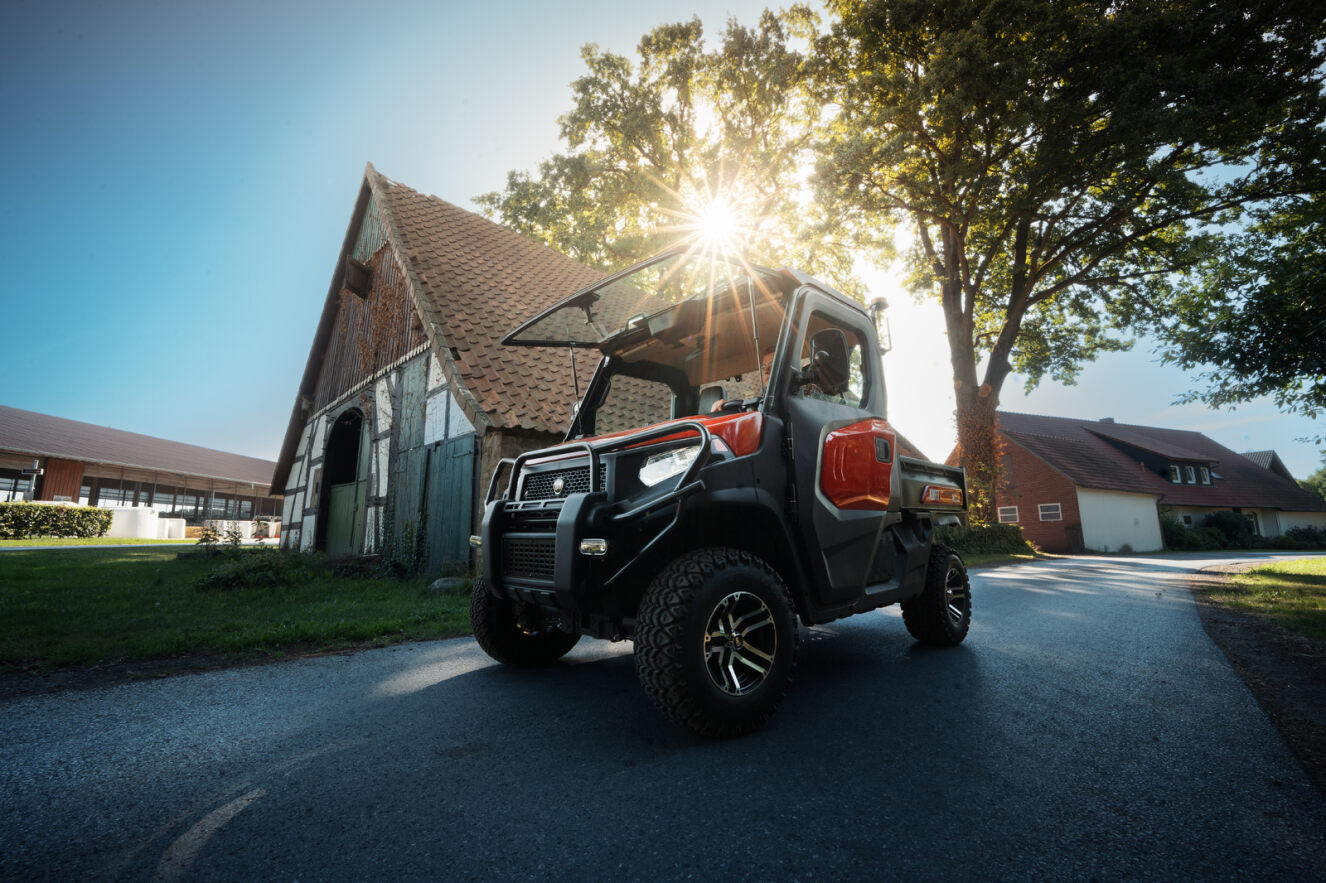

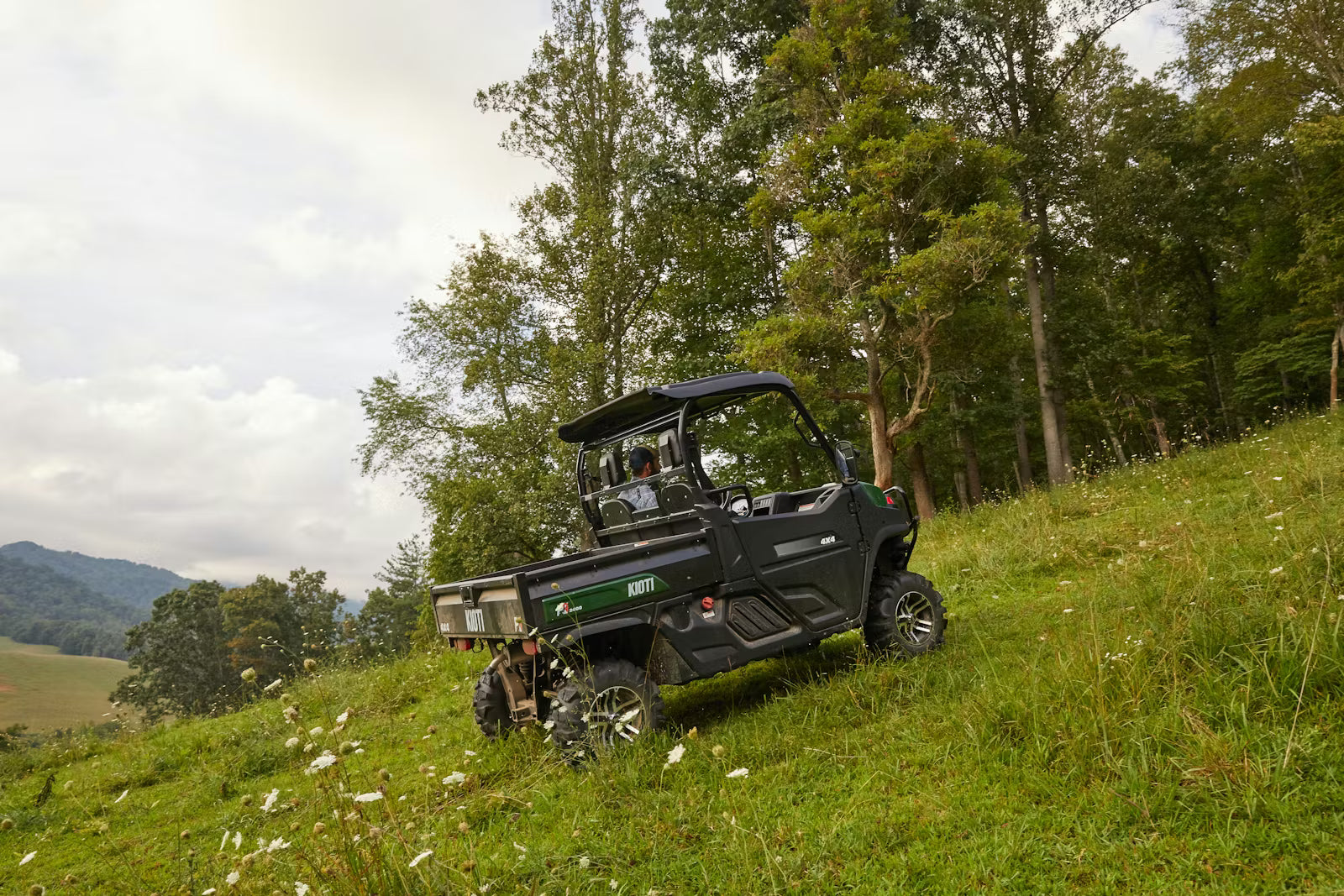

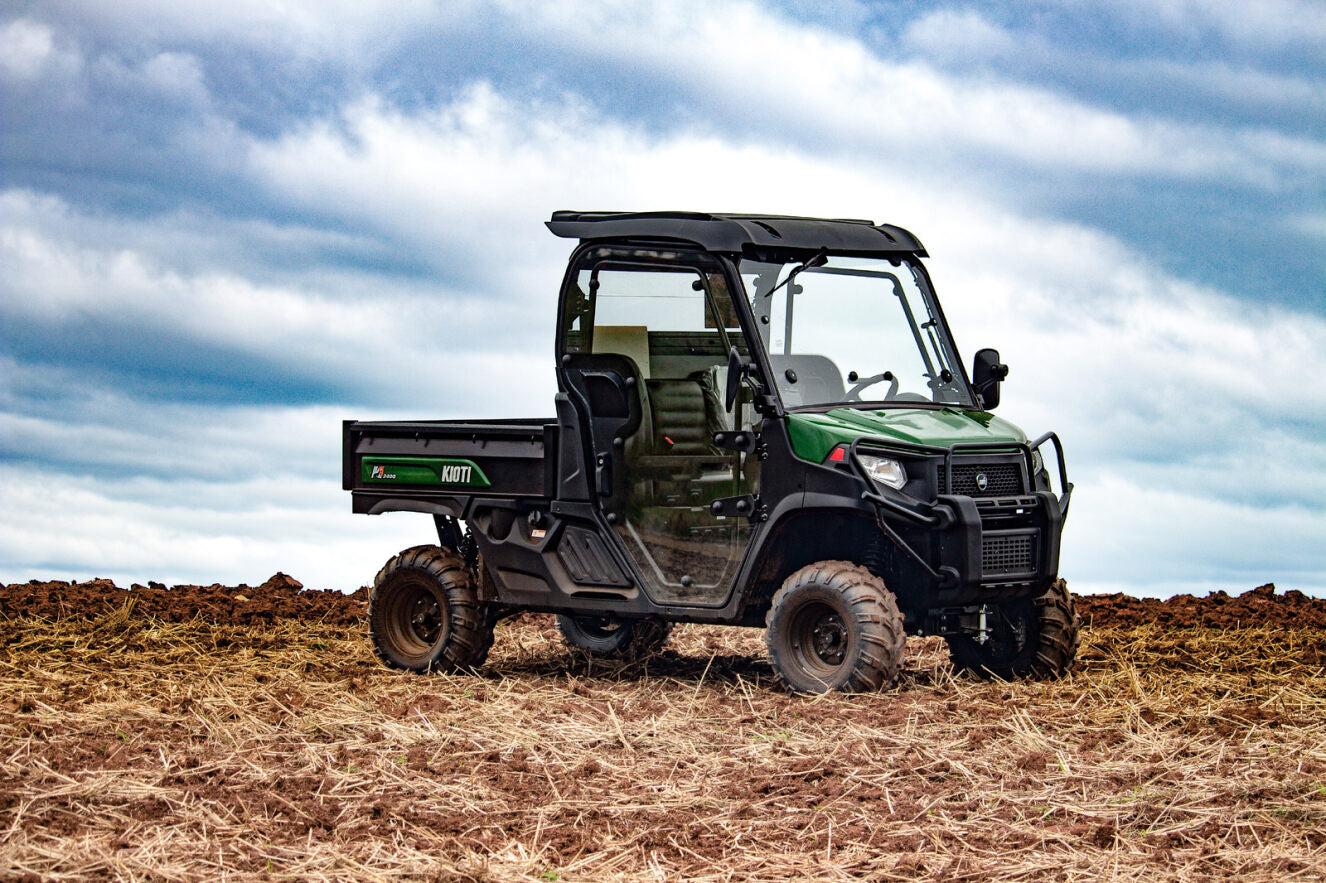

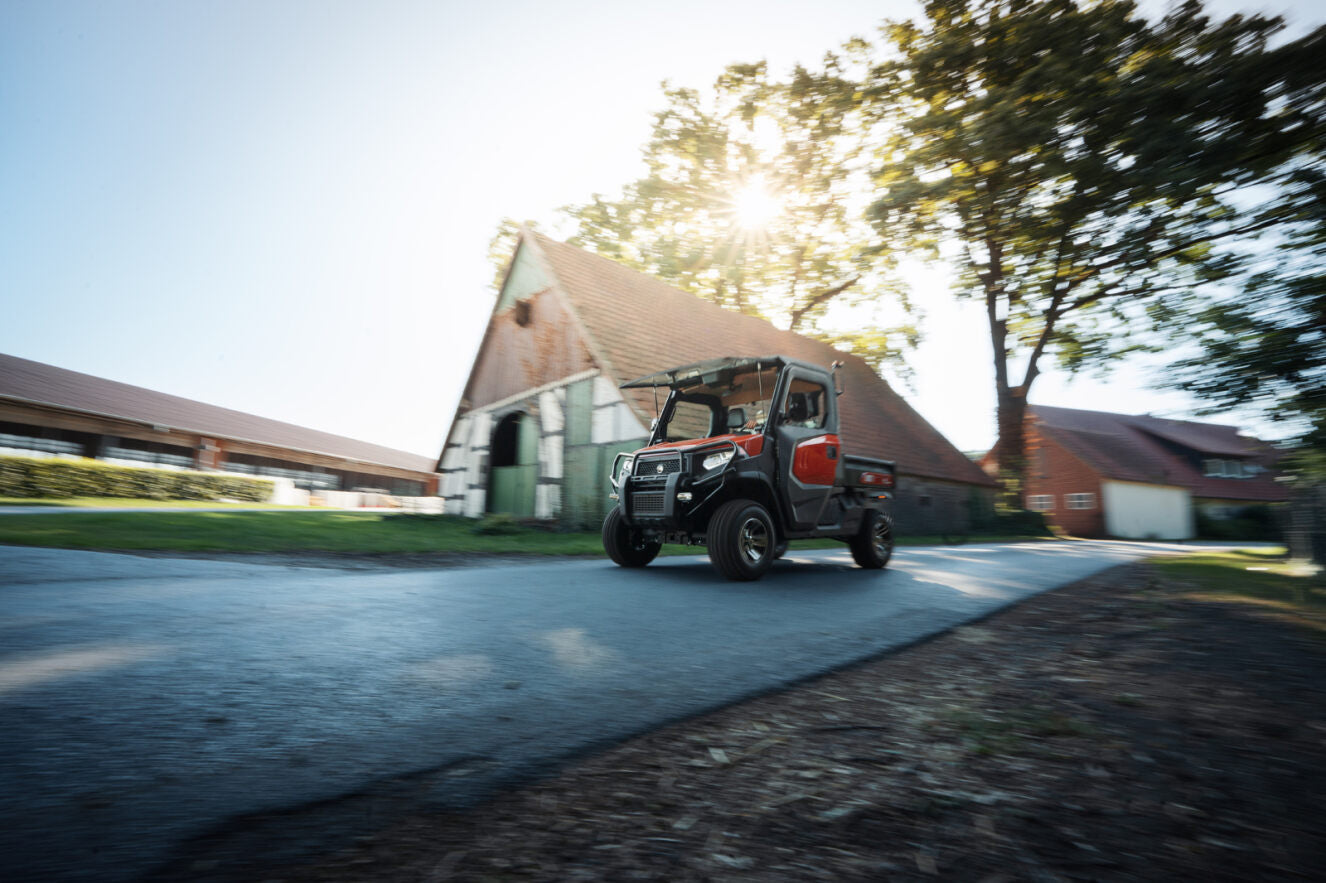

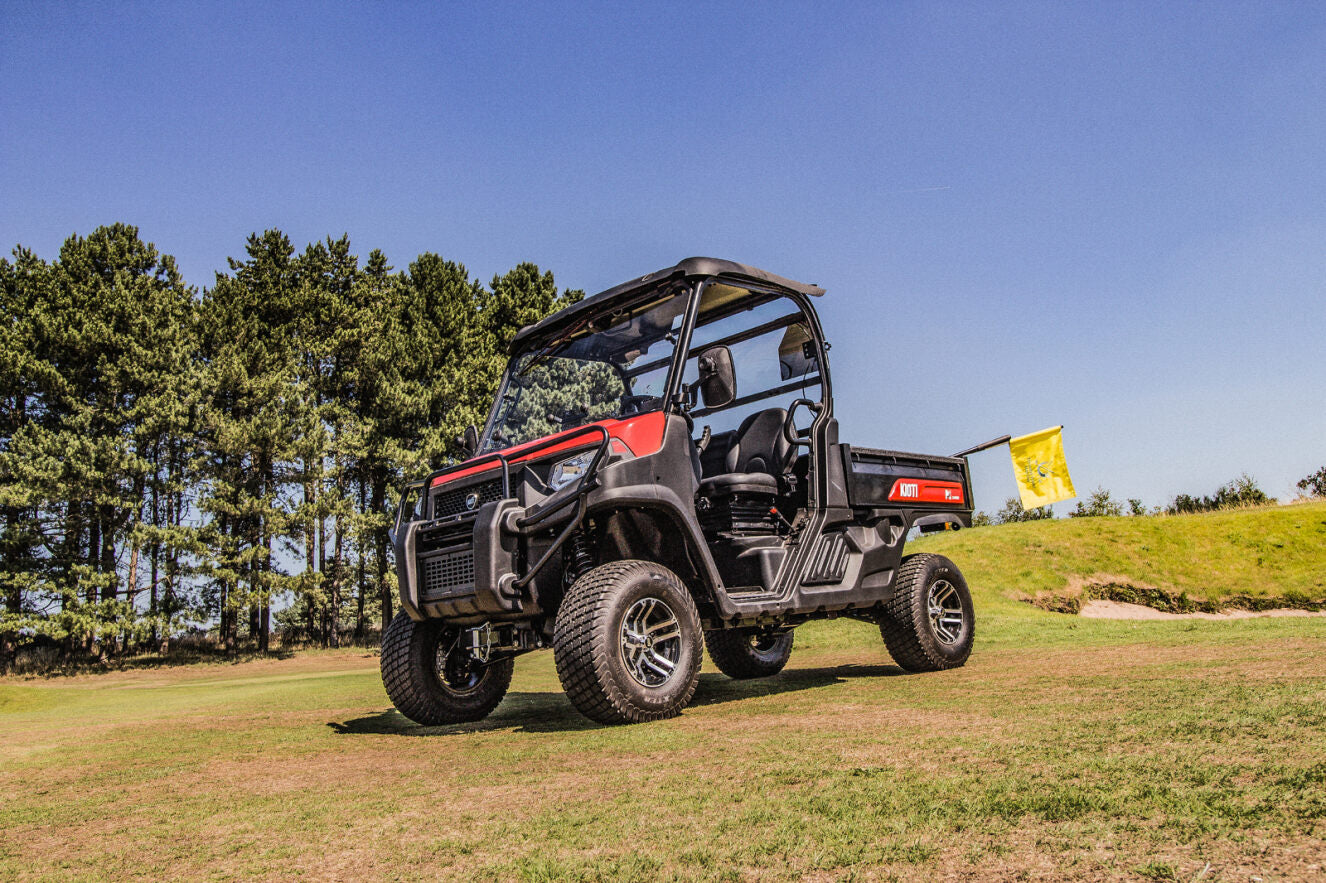

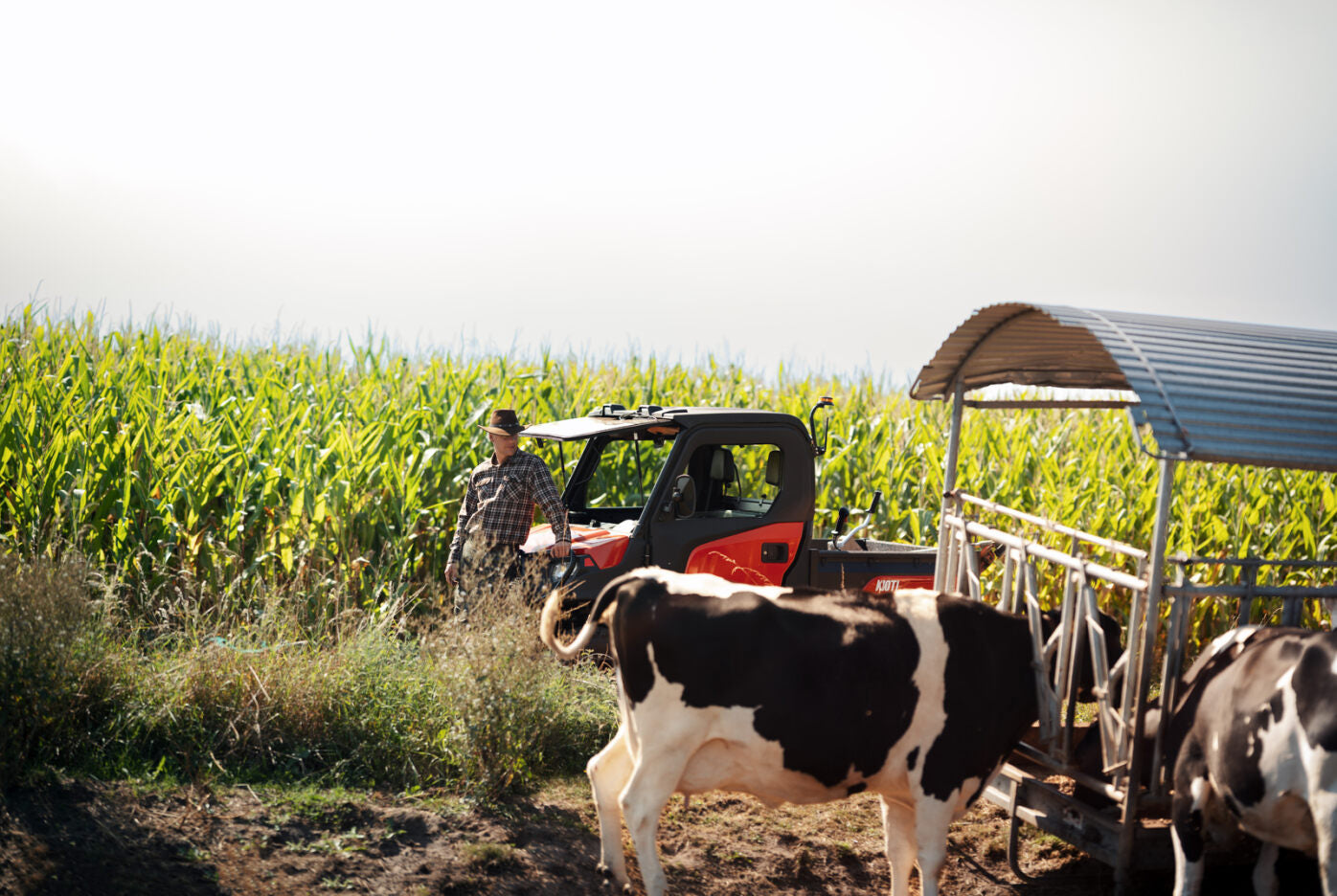

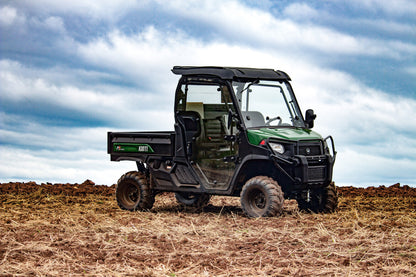

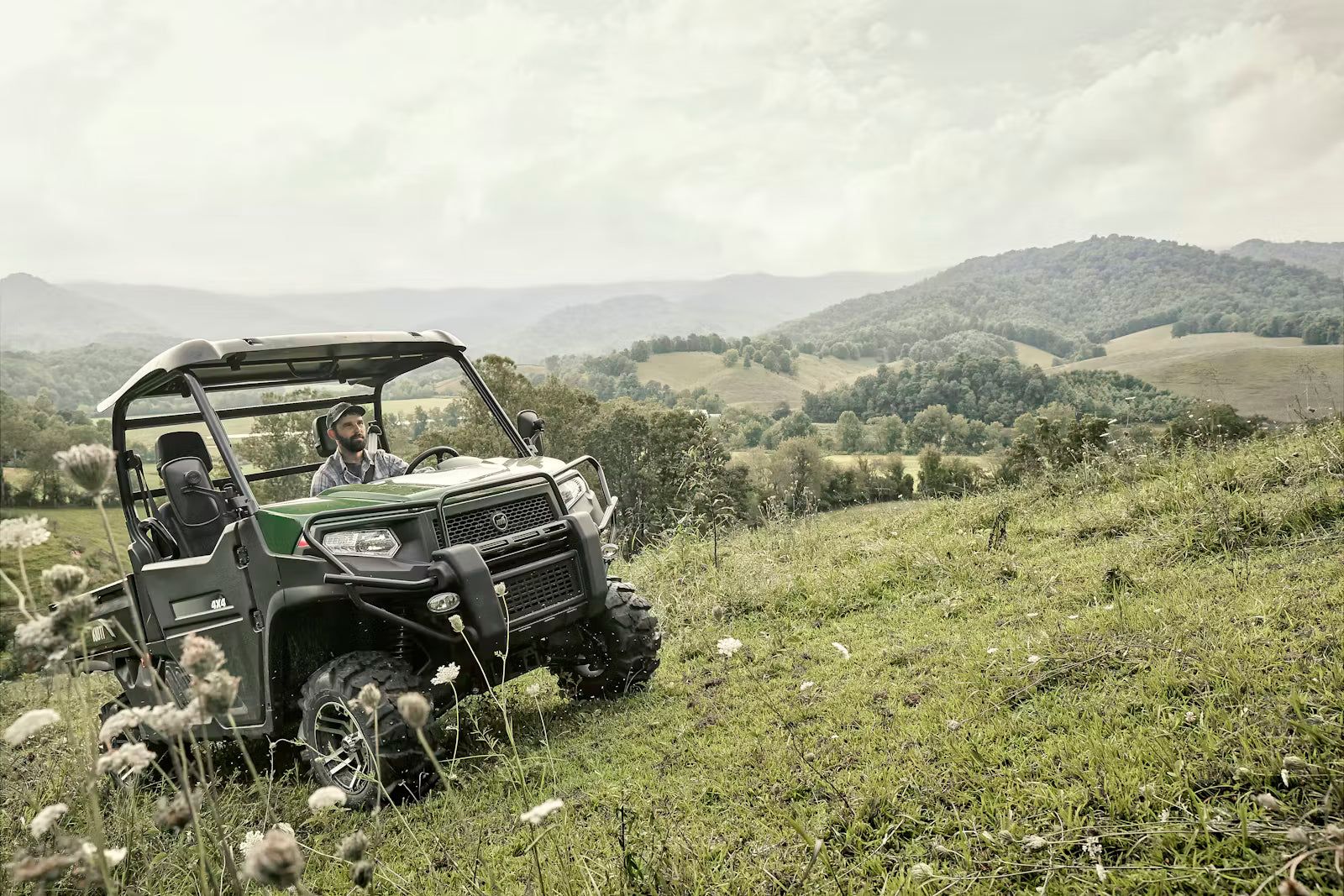

KIOTI K9 UTV

Engine:

• Model: 3C100LFU-D3
• Gross Power: 24.5 HP (ECE-R120)
• Displacement: 61.45 cu.in. (1,007 cc)
• Rated Revolution: 3,200 RPM
• Fuel Type: Diesel
• Fuel Tank Capacity: 37 litres

Drive Train:

• Type: Belt CVT (Continuously Variable Transmission)
• Gears: Low, High, Neutral, Reverse (L-H-N-R)
• Drive Mode: 2WD/4WD Selectable
• Max Speed: 50 km/h (approximately)
• Brakes: Hydraulically actuated dry caliper disc brakes (front and rear)

Suspension:

• Front: Independent double A-Arm (wishbone type)
• Rear: Independent double A-Arm (wishbone type)
• Front Wheel Travel: 130 mm total travel
• Rear Wheel Travel: 160 mm total travel

Steering:

• Type: Rack & Pinion with Electronic Power Steering (EPS)

Dimensions:

• Overall Length: 3,045 mm
• Overall Width: 1,640 mm
• Overall Height: 1,990 mm
• Wheelbase: 2,180 mm
• Ground Clearance: 304 mm (approximate)

Weight:

• Dry Weight: Approx. 1,050 kg (varies with configuration)

Cargo Bed:

• Dimensions (L x W x H): 1,110 x 1,480 x 293 mm
• Cargo Bed Capacity: 500 kg
• Tipping Mechanism: Manual, with an optional electric lift kit

Tyres:

• Standard Tyres: General-purpose worksite tyres (specifications vary by configuration)
• Size: 25 x 10 - 12 (typical)

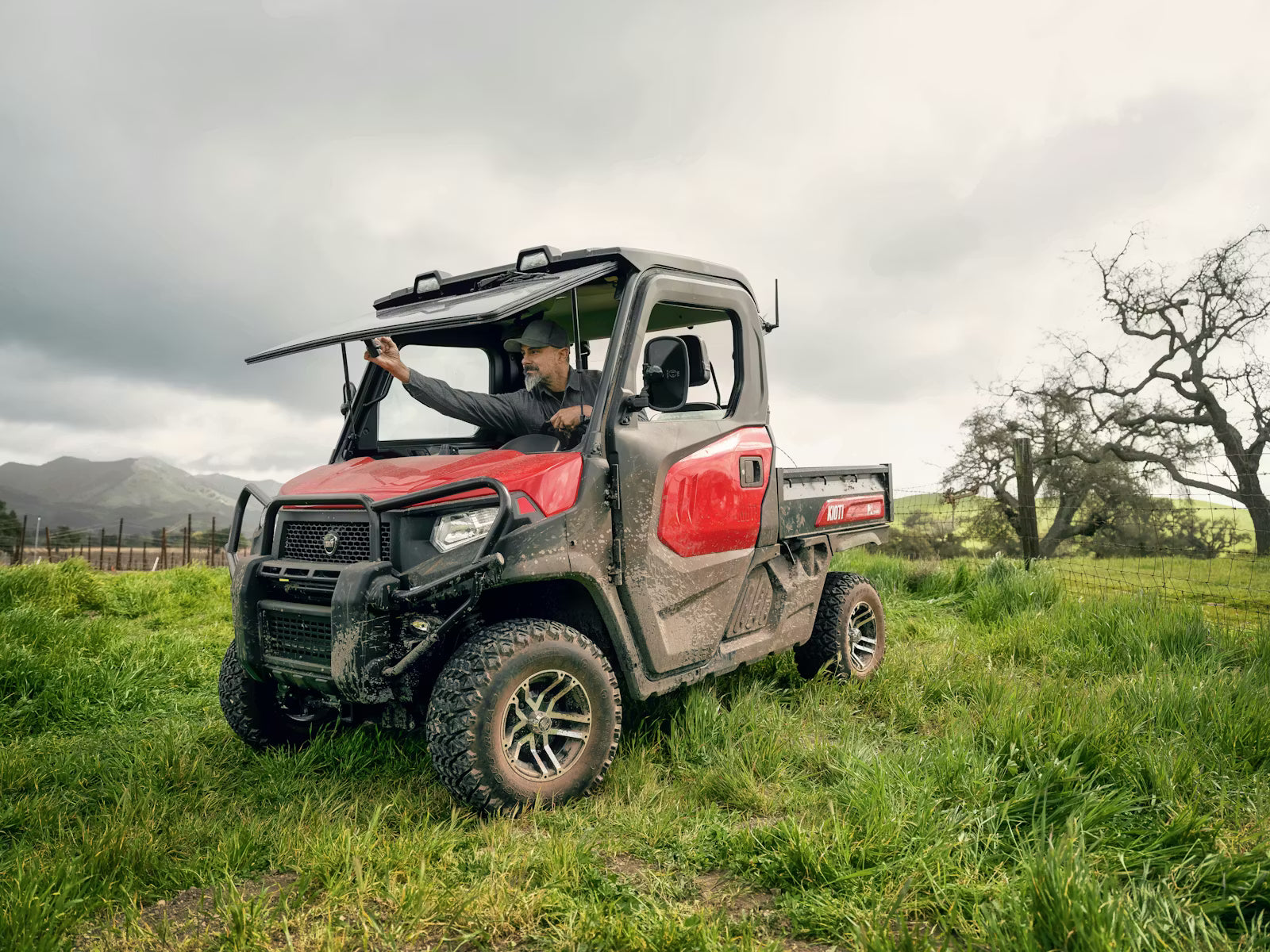

Cabin:

• Type: Fully enclosed cabin
• Climate Control: Heating and air conditioning (factory-fitted)
• Seating Capacity: 3 persons (driver and two passengers)
• Safety Belts: Individual seat belts for all occupants

Electrical:

• Battery Voltage: 12V
• USB Ports: Provided for charging electronic devices
• Lighting: Standard road lighting kit with optional work lights

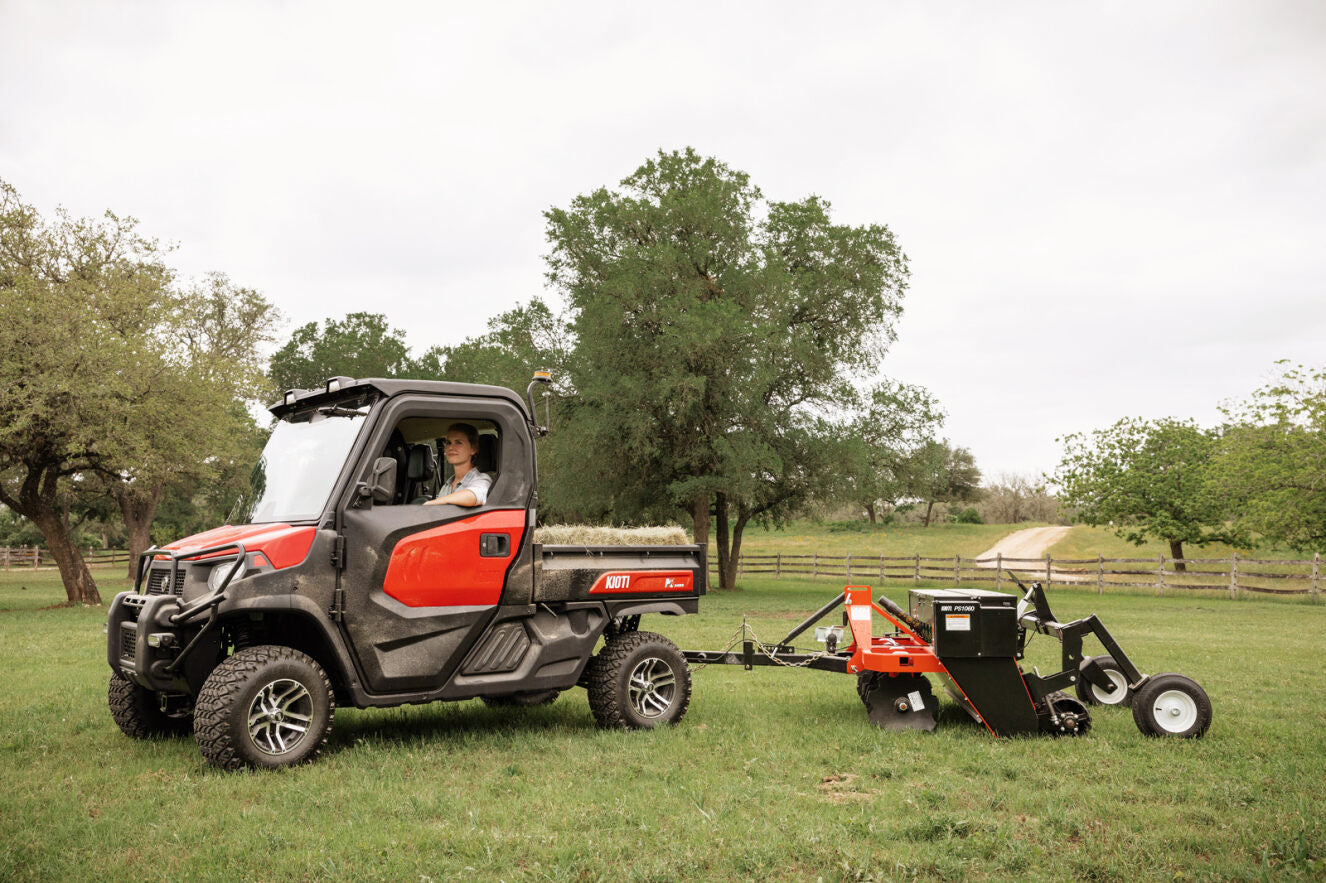

Hitch and Towing:

• Front Hitch: Clevis hitch (standard)
• Rear Hitch: Clevis drawbar with hitch pin

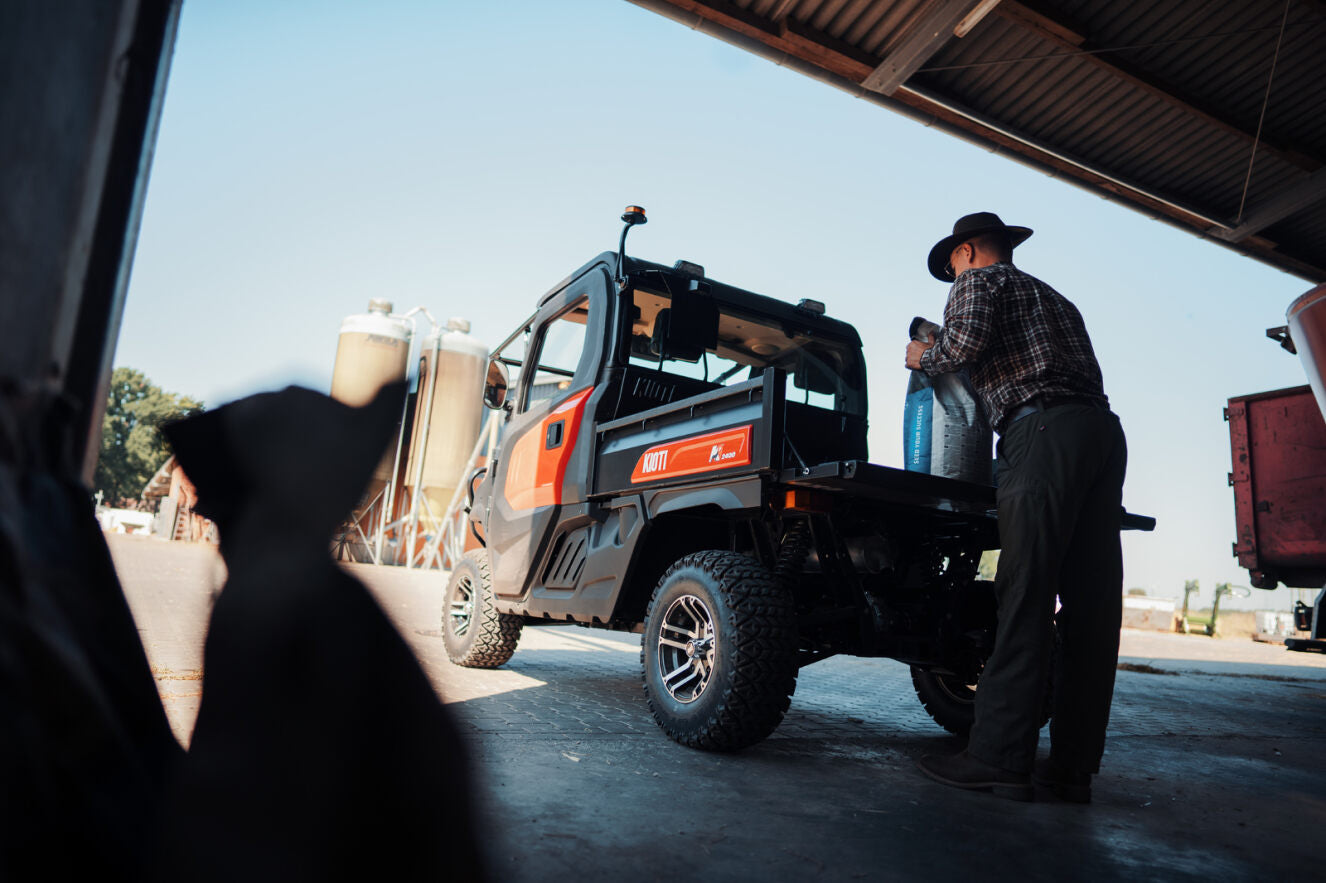

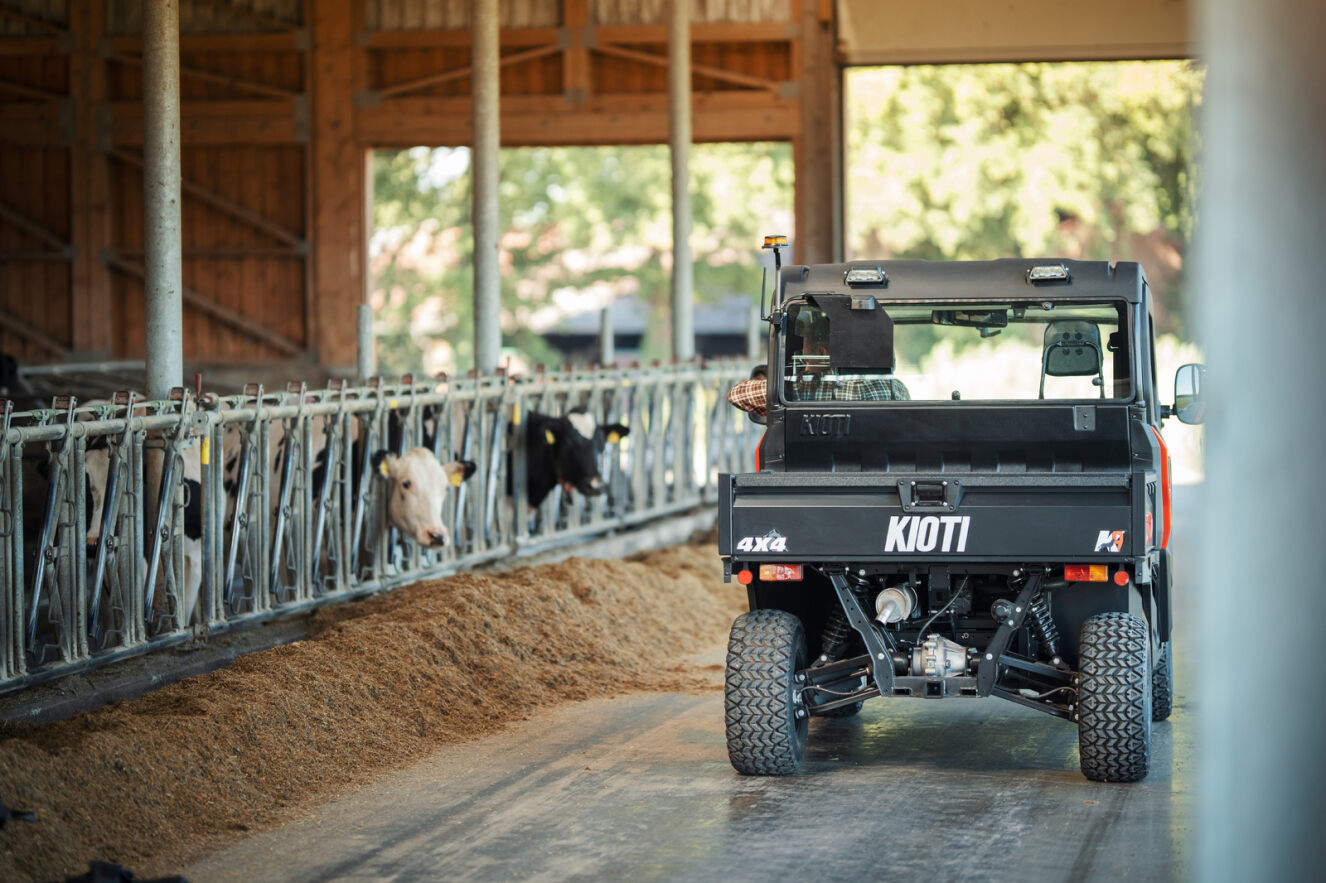

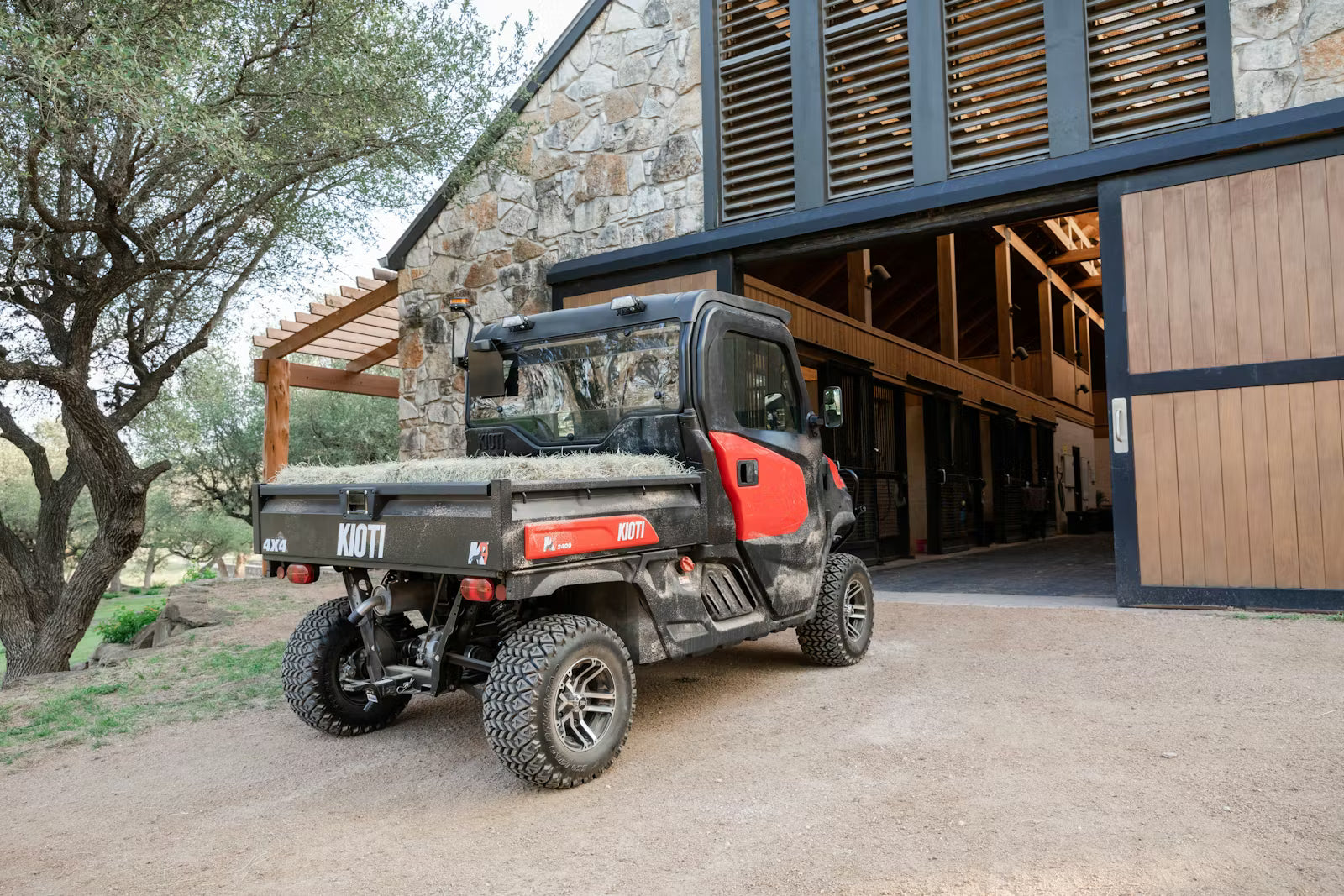

The Largest Load Space in its Class: Take all the tools you need, anywhere you need to go. You can load up to 500 kg in the urethane spray coated load space.

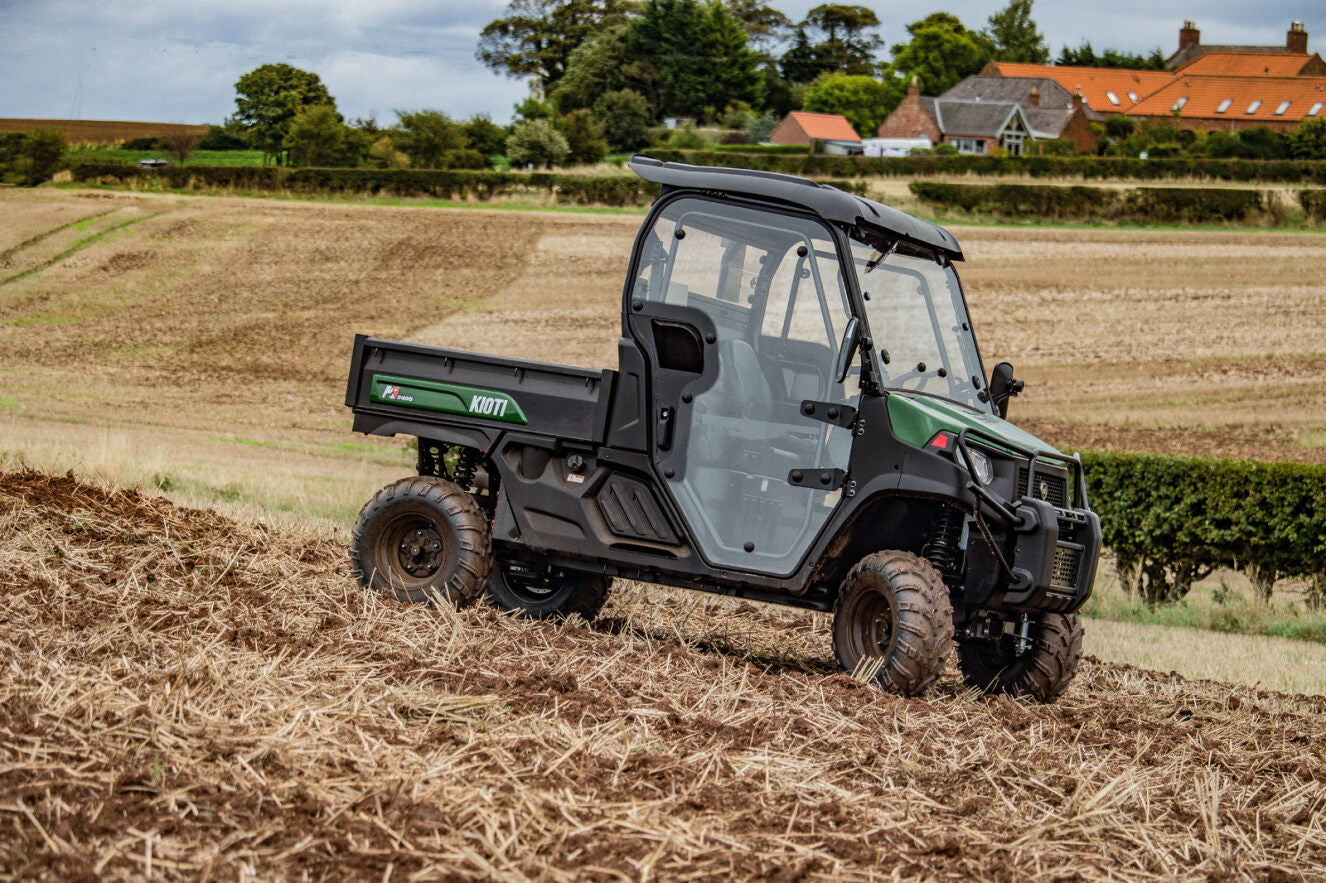

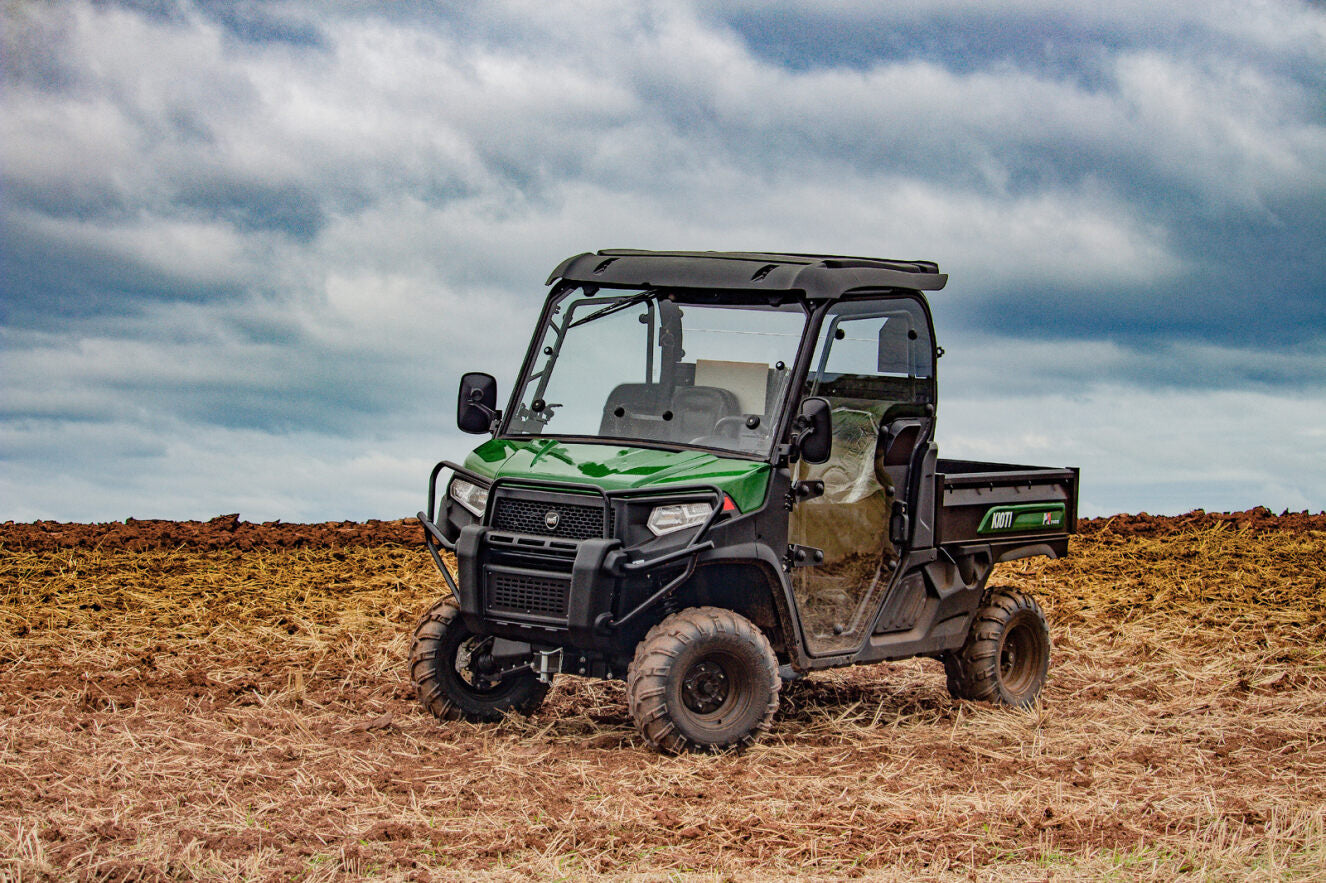

A Smooth Ride: Thanks to the high ground clearance (310 mm) and individual suspension on each wheel, you’re in for a smooth ride, no matter the terrain.

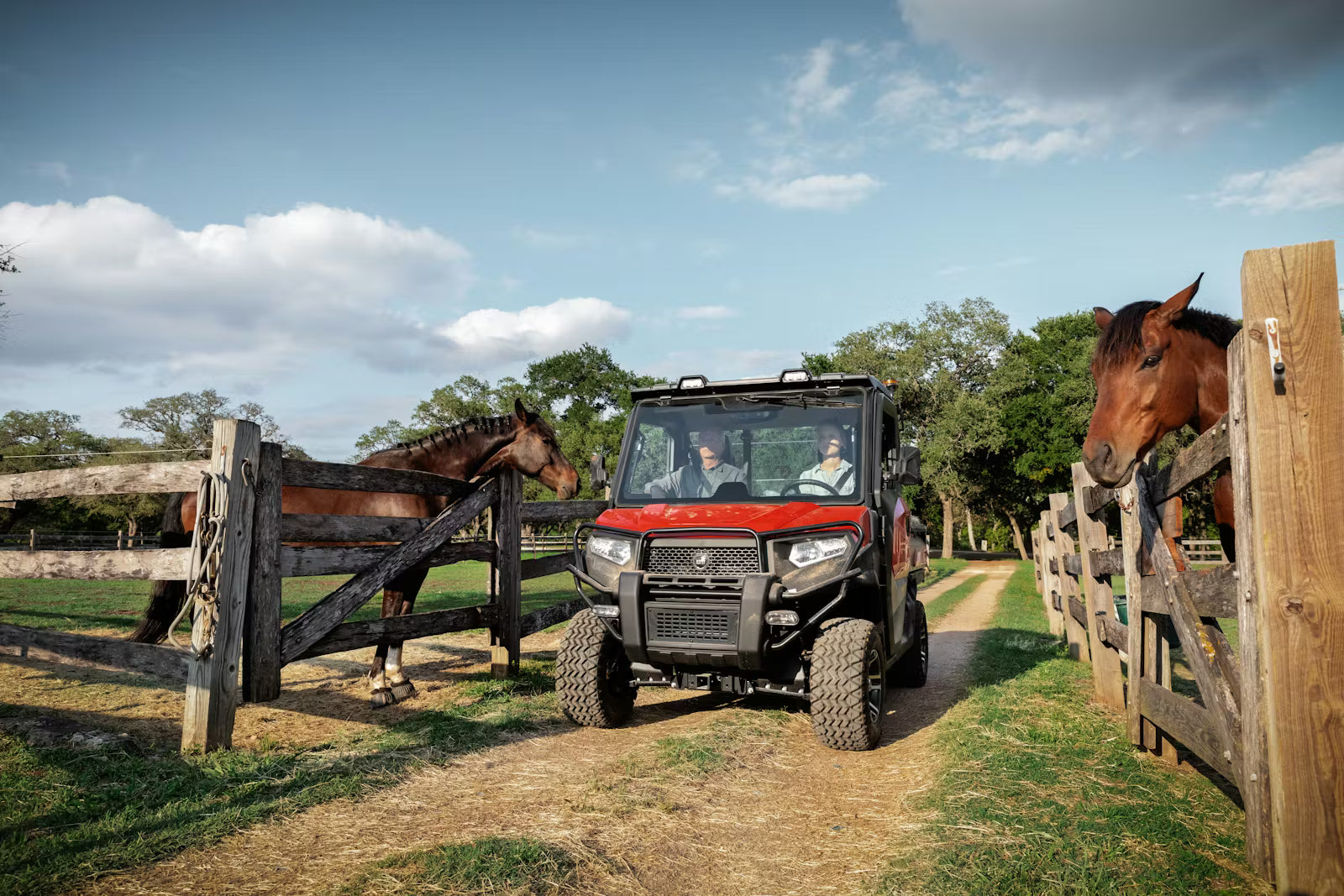

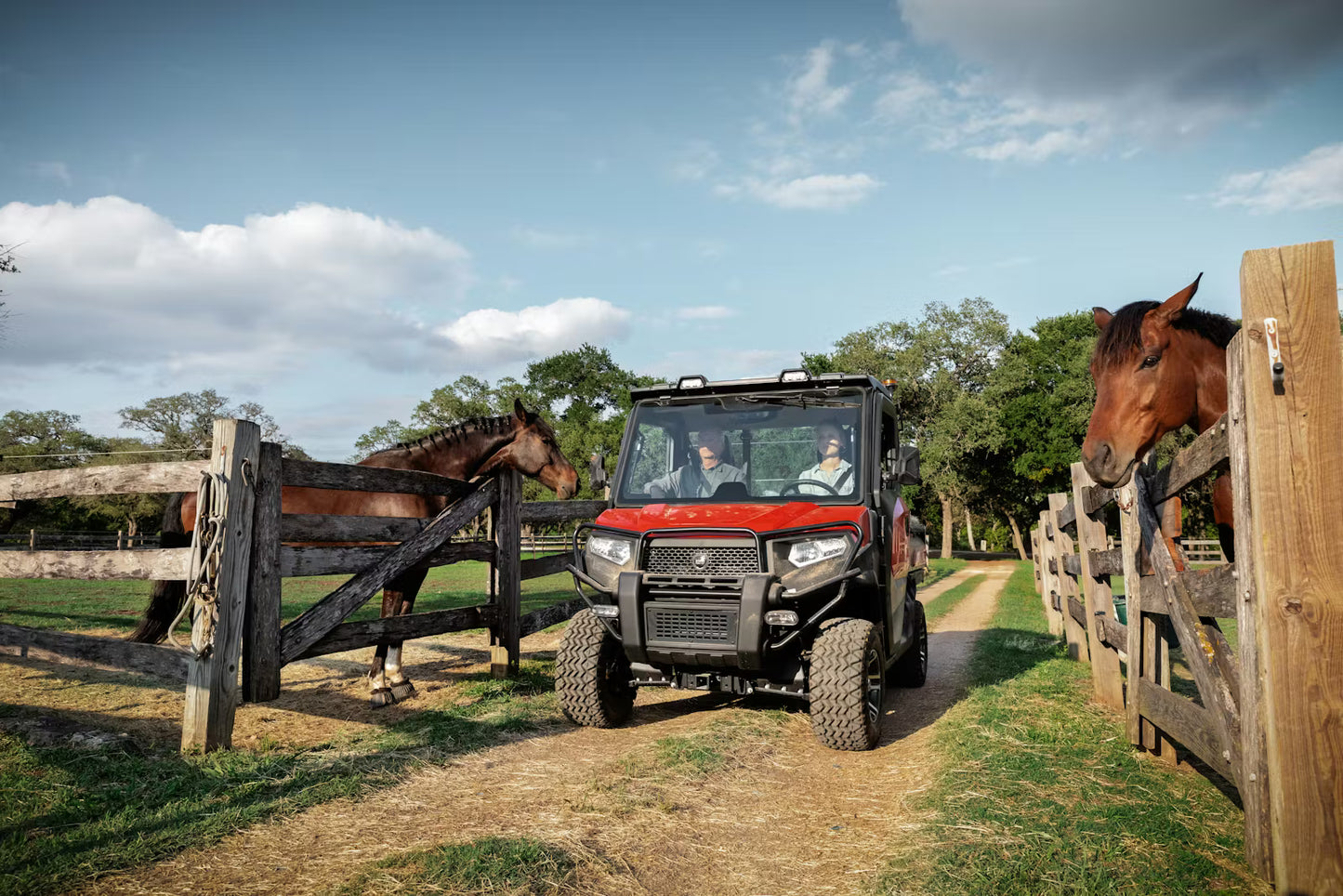

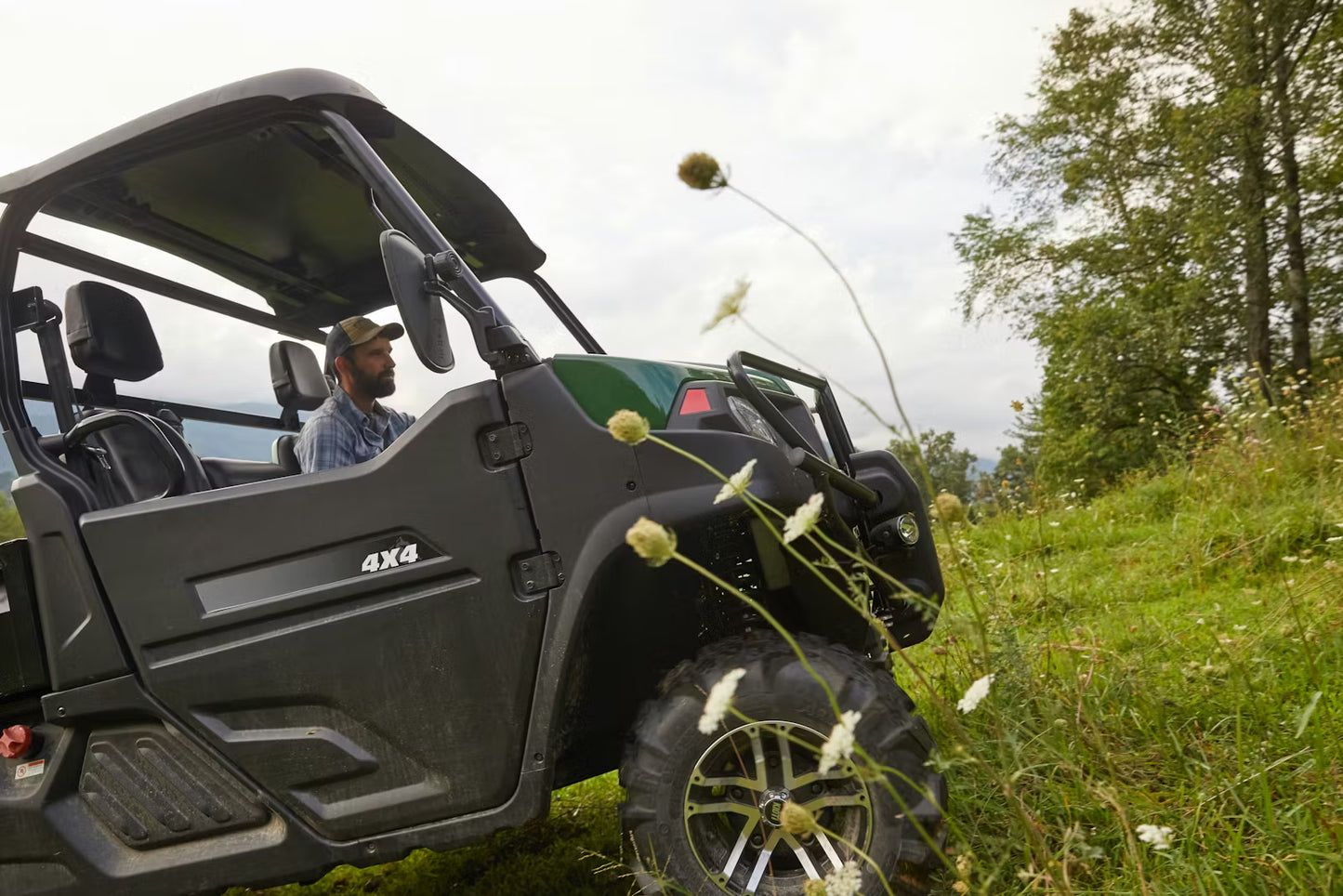

Safe and Comfortable: The KIOTI K9 accommodates up to 3 people comfortably and safely inside, The driver has a suspension seat, seatbelts, ROPS and optional heater/air-conditioning.

Reliable Engine: The K9 UTV has a 3 cylinder 24HP water-cooled Kioti diesel engine with 1007cc. The maximum engine speed of 3000 rpm ensures low fuel consumption, low vibration and long engine life.

Seven Year Warranty: Kioti tractors stand for quality and reliability, now backed by an extended 7-year or 5,000-hour warranty (whichever comes first) for long-term peace of mind.

• Applies to all tractors sold from January 2025 onwards
• Years 1–2: full tractor warranty, unlimited hours
• Years 3–7: powertrain warranty, up to 5,000 hours
