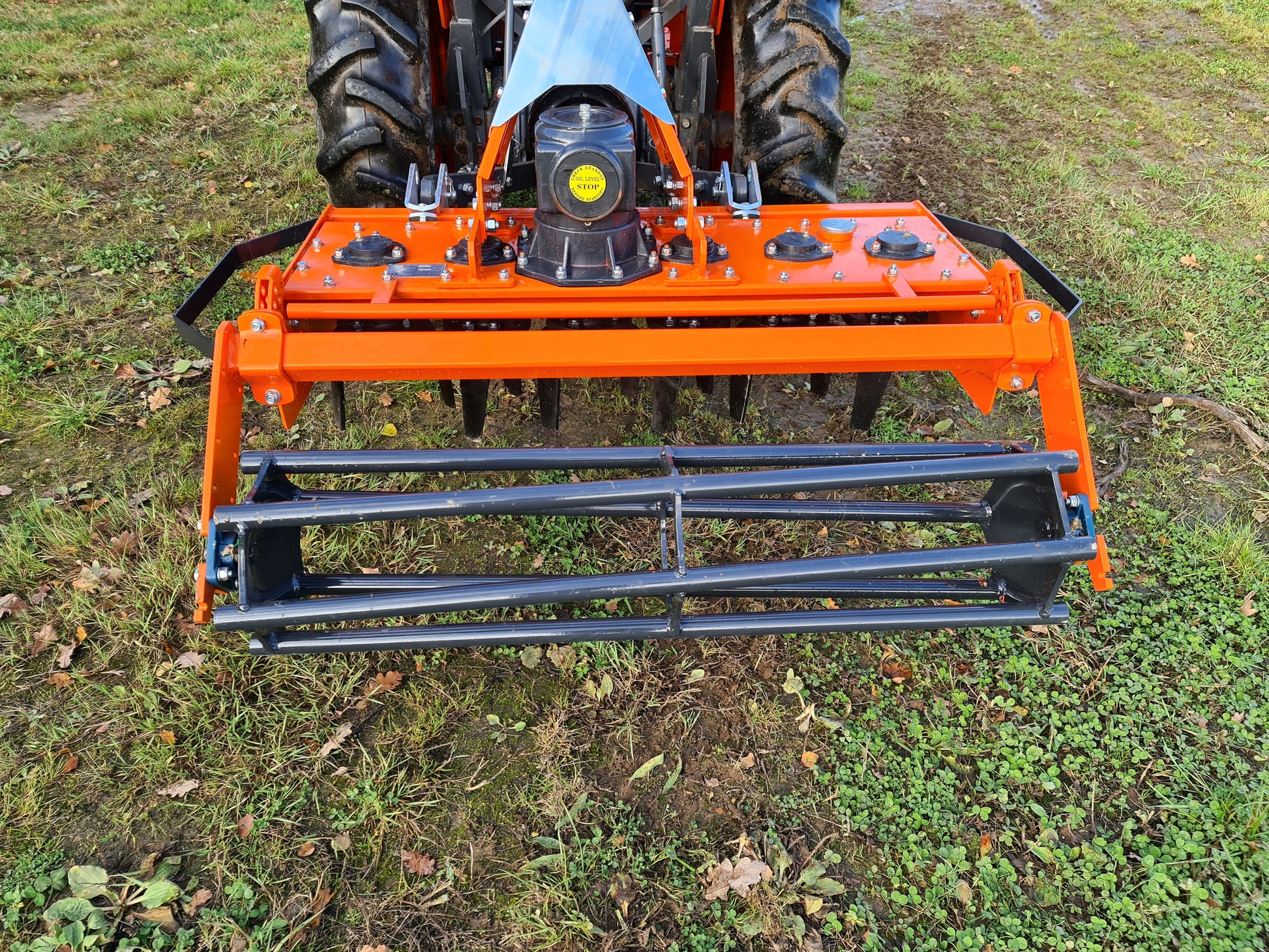

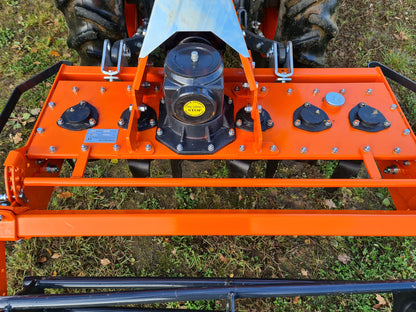

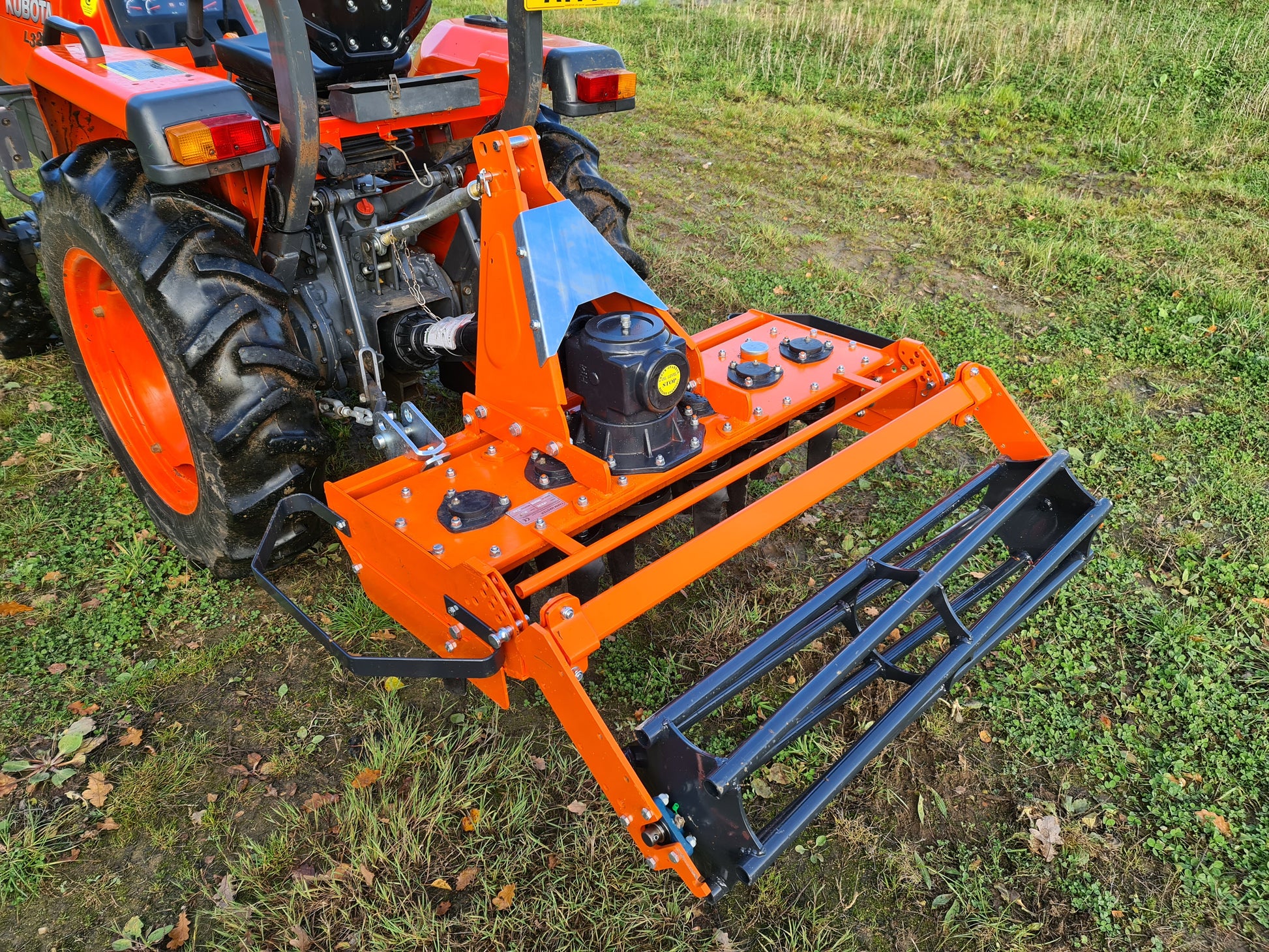

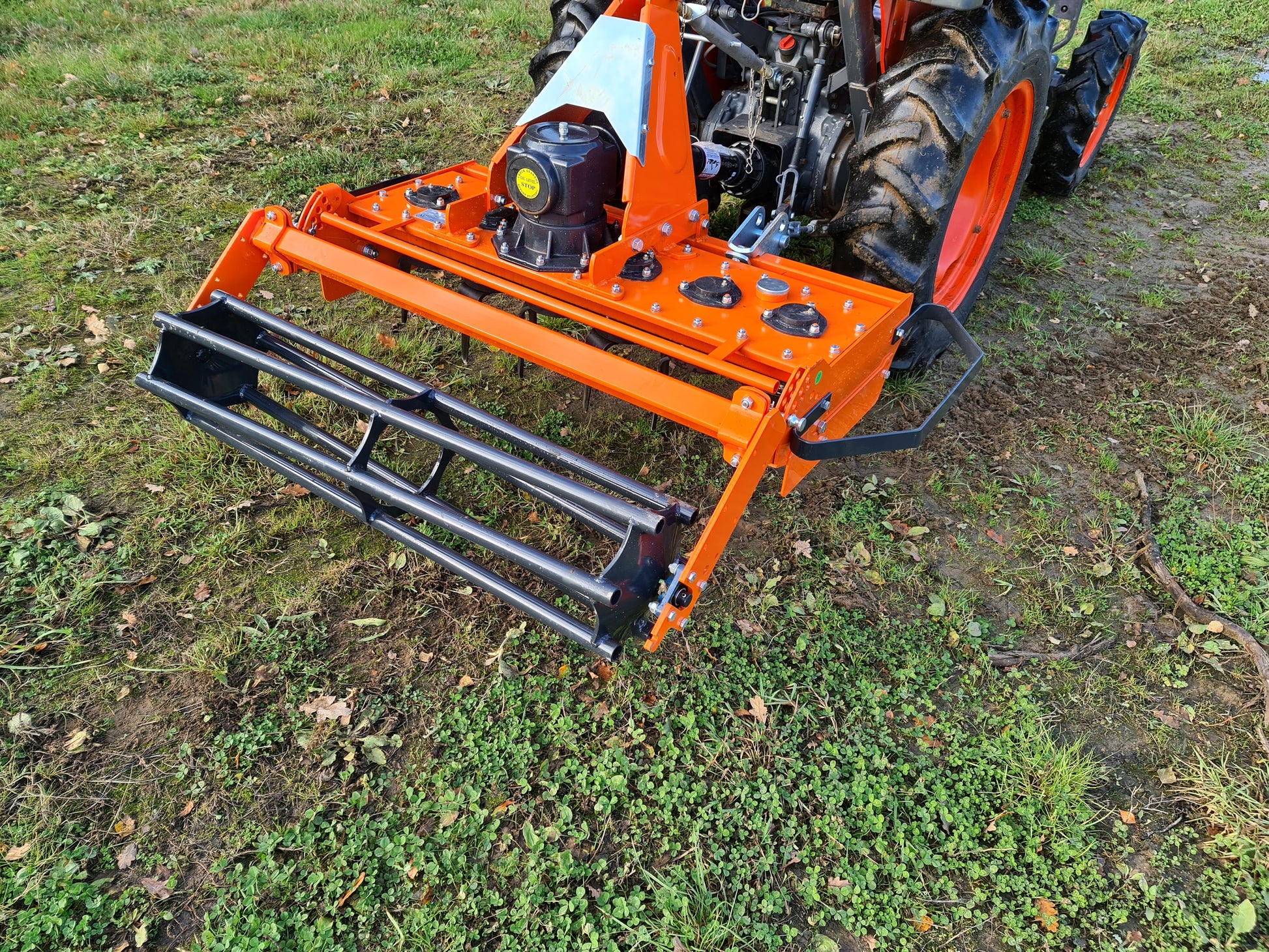

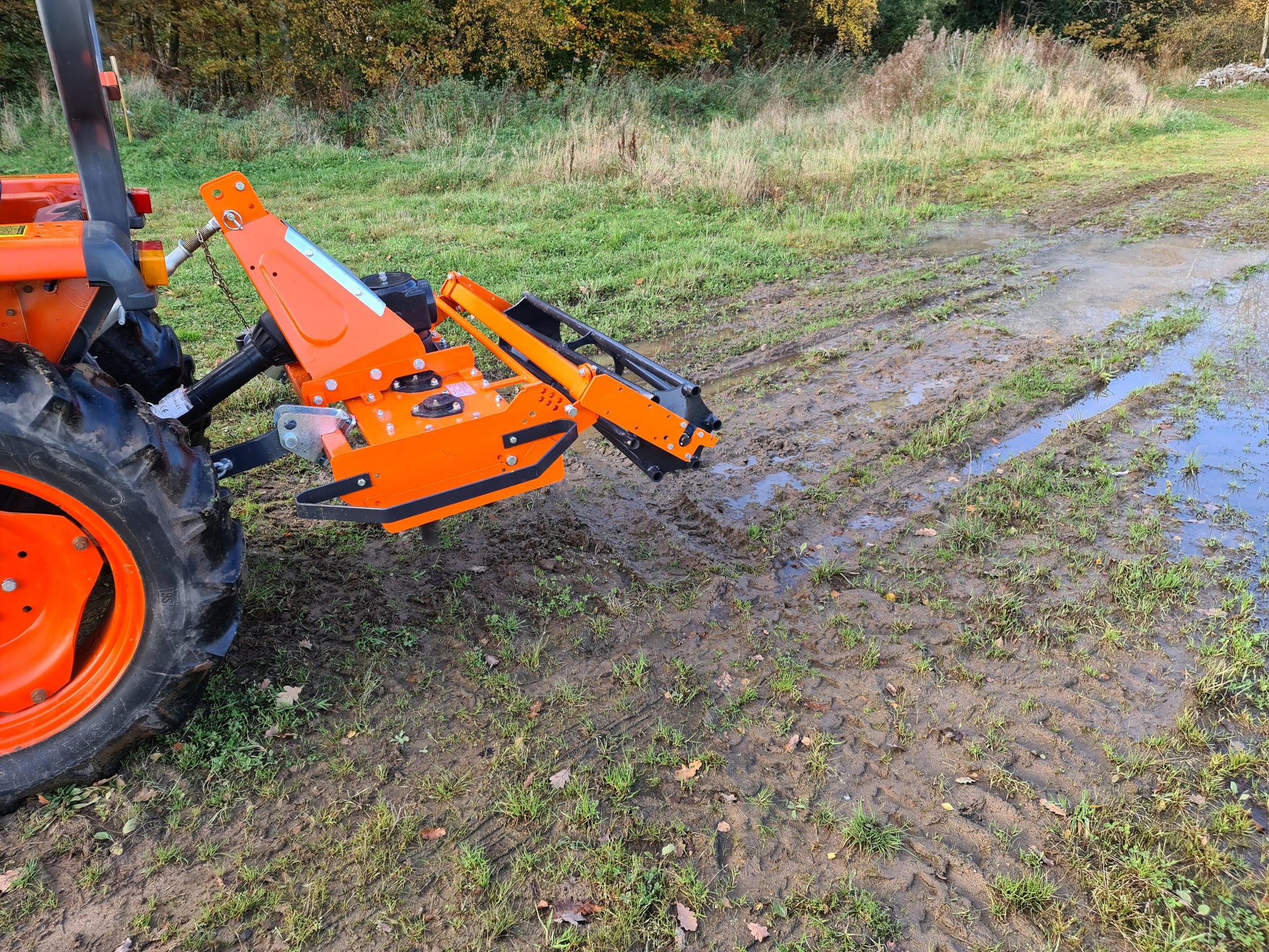

FarmMaster PH Series Tractor Power Harrow

£1,595.00 GBP

Sale Sold out

Shipping calculated at checkout.

Excl. VAT and Delivery

The FarmMaster PH Series Compact Tractor Power Harrow, is specially designed for preparing the soil in vineyards, orchards, greenhouses, seedbeds, and fields, whilst helping to keep moisture and nutrition in the soil.

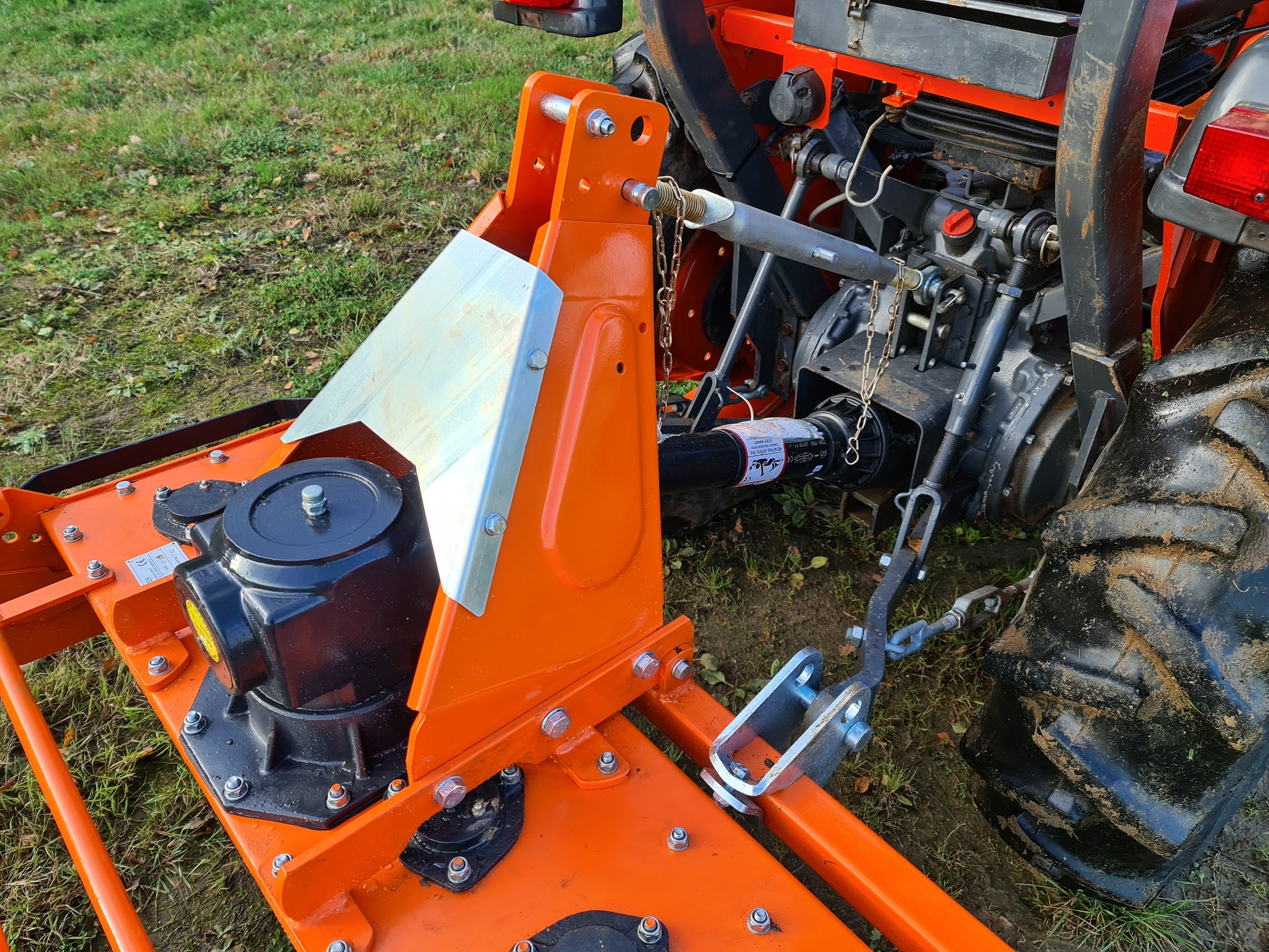

The FarmMaster PH Series features enhanced safety features such as a shear bolt PTO shaft and a friction clutch to protect both the power harrow and the tractor from damage if overloaded.

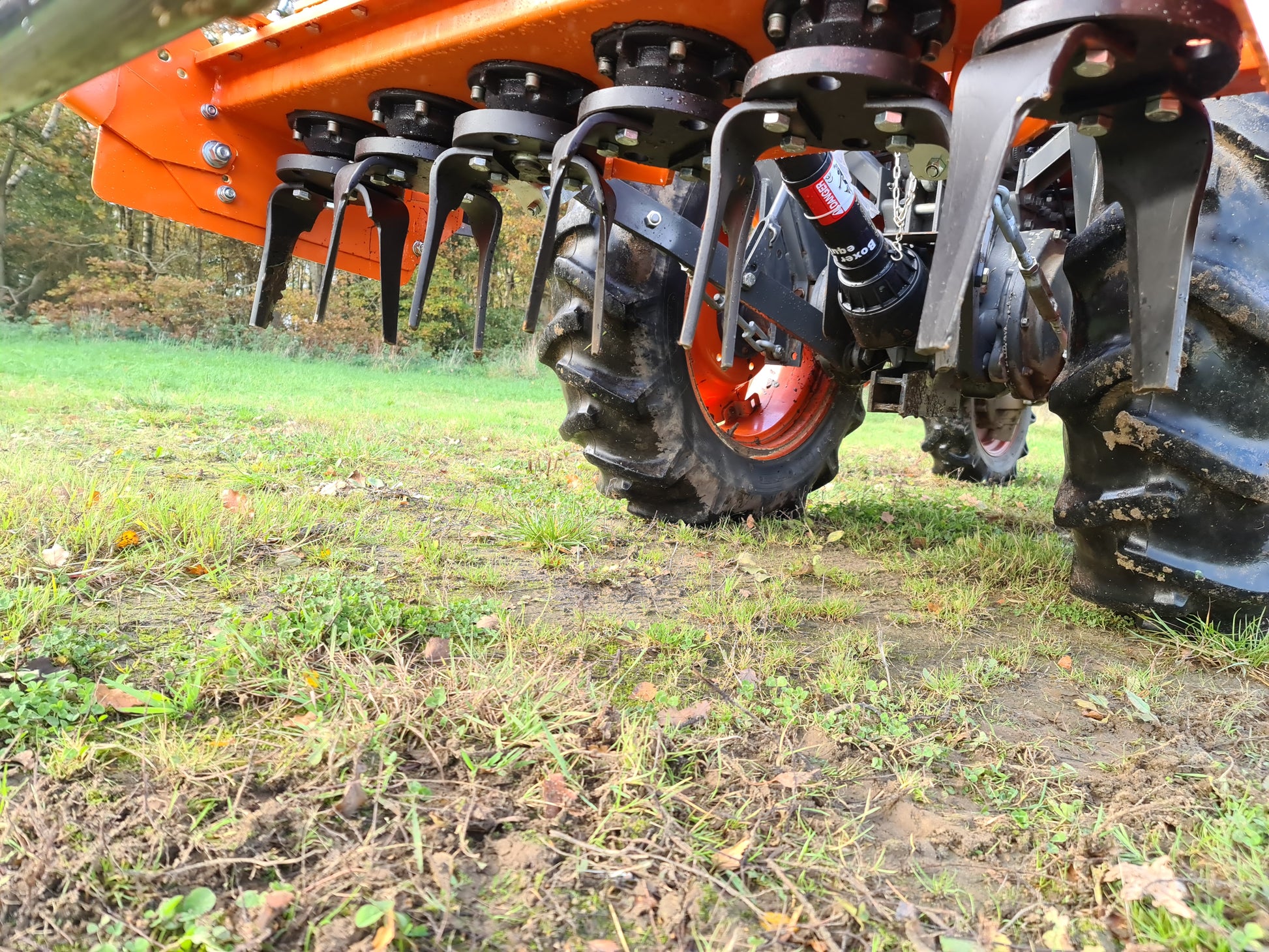

The PH series power harrow has various sets of vertical tines, the tines are revolved on a vertical axis and till the earth horizontally. The effect is that, unlike a rotary tiller, soil layers are not inverted or turned over, which is helpful in preventing dormant weed seeds from being taken to the surface, and there is no horizontal slicing of the soil subsurface that can lead to hardpan formation.

Watch our overview of the FarmMaster PH Series Power Harrow on YouTube

Size 0.95m 1.10m 1.30m 1.70m

Specification

FarmMaster PH95 Power Harrow

Working Width: 90cm
No. of Tine Rotors: 4
No. of Blades per machine: 4L+4R
Working Depth: 50-200mm
Required Power: 20-35HP
PTO Input Speed: 540 r/min
Gearbox power: 50HP
Weight: 292KG
Dimensions: 1150 x 1230 x 920mm

FarmMaster PH110 Power Harrow

Working Width: 110cm
No. of Tine Rotors: 5
No. of Blades per machine: 5L+5R
Working Depth: 50-200mm
Required Power: 25-40HP
PTO Input Speed: 540 r/min
Gearbox power: 50HP
Weight: 310KG
Dimensions: 1350 x 1230 x 920mm

FarmMaster PH130 Power Harrow

Working Width: 139cm
No. of Tine Rotors: 6
No. of Blades per machine: 6L+6R
Working Depth: 50-200mm
Required Power: 25-50HP
PTO Input Speed: 540 r/min
Gearbox power: 50HP
Weight: 330KG
Dimensions: 1550 x 1230 x 920mm

FarmMaster PH170 Power Harrow

Working Width: 170cm
No. of Tine Rotors: 8
No. of Blades per machine: 8L+8R
Working Depth: 50 - 200mm
Required Power: 35-60HP
PTO Input Speed: 540 r/min
Gearbox power: 50HP
Weight: 345KG
Dimensions: 1950 x 1230 x 920mm

Additional Information

Will This Fit My Tractor?

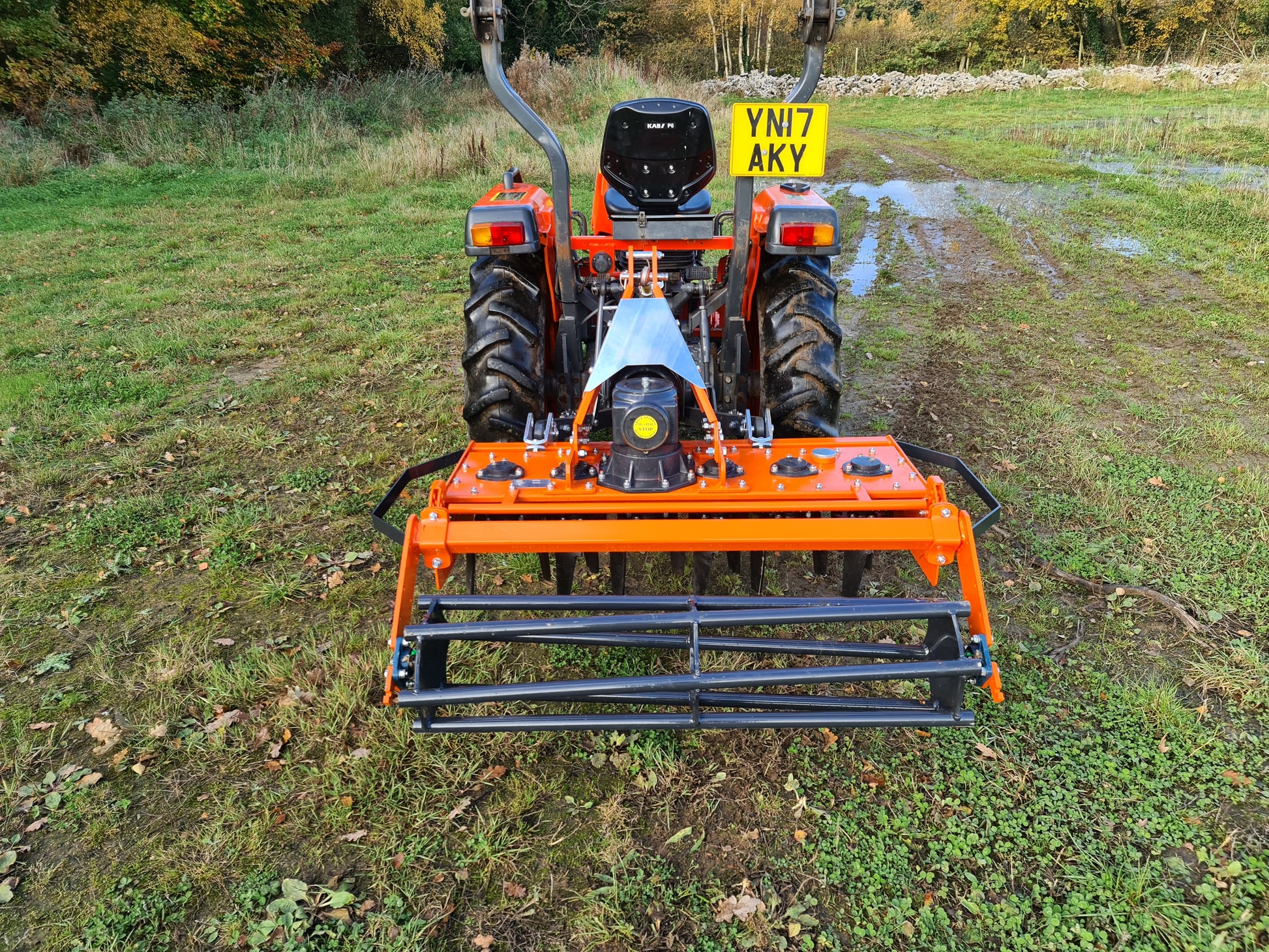

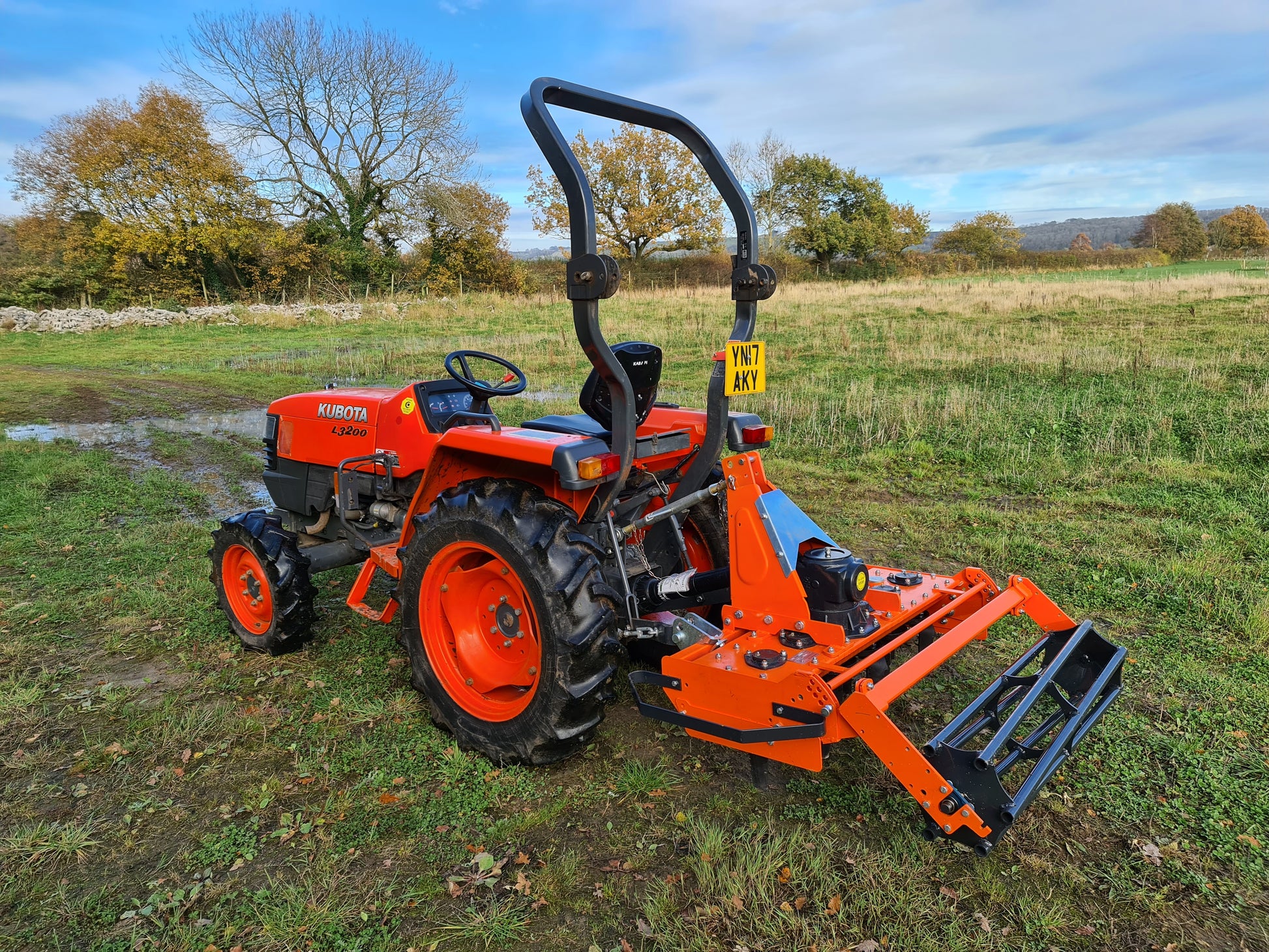

The FarmMaster PH Series Power Harrow is designed for compact tractors from 20-60HP. It attaches to the 3 point linkage and is PTO powered. The power requirement for each model is listed below:

FarmMaster PH95 0.95m Power Harrow: 20-35hp
FarmMaster PH110 1.10m Power Harrow: 25-40hp
FarmMaster PH130 1.30m Power Harrow: 25-50hp
FarmMaster PH170 1.70m Power Harrow: 35-60hp

Key Features:

Heavy-duty steel construction.
Easily adjustable.
2pcs of "U" fashioned blades per rotor

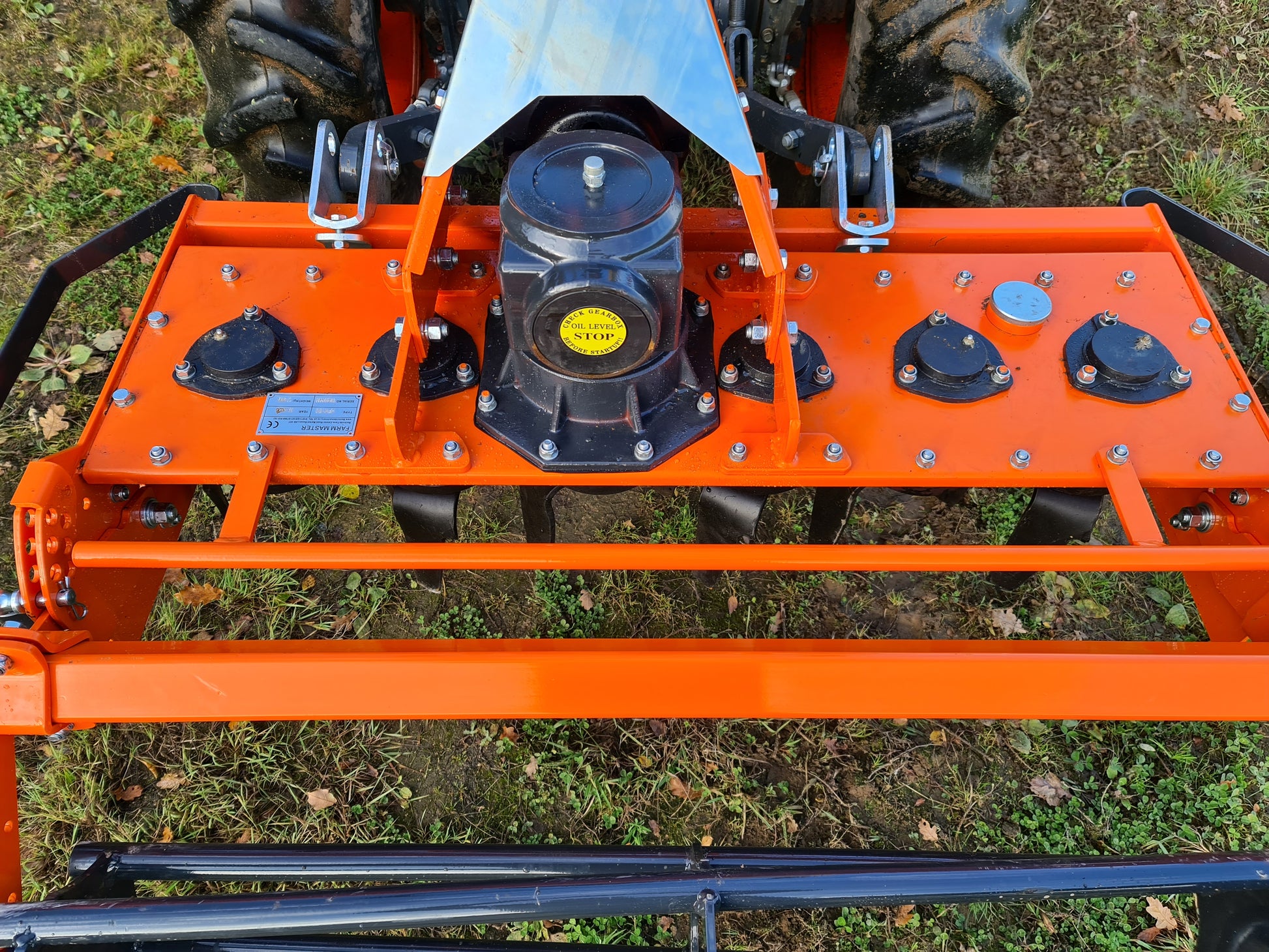

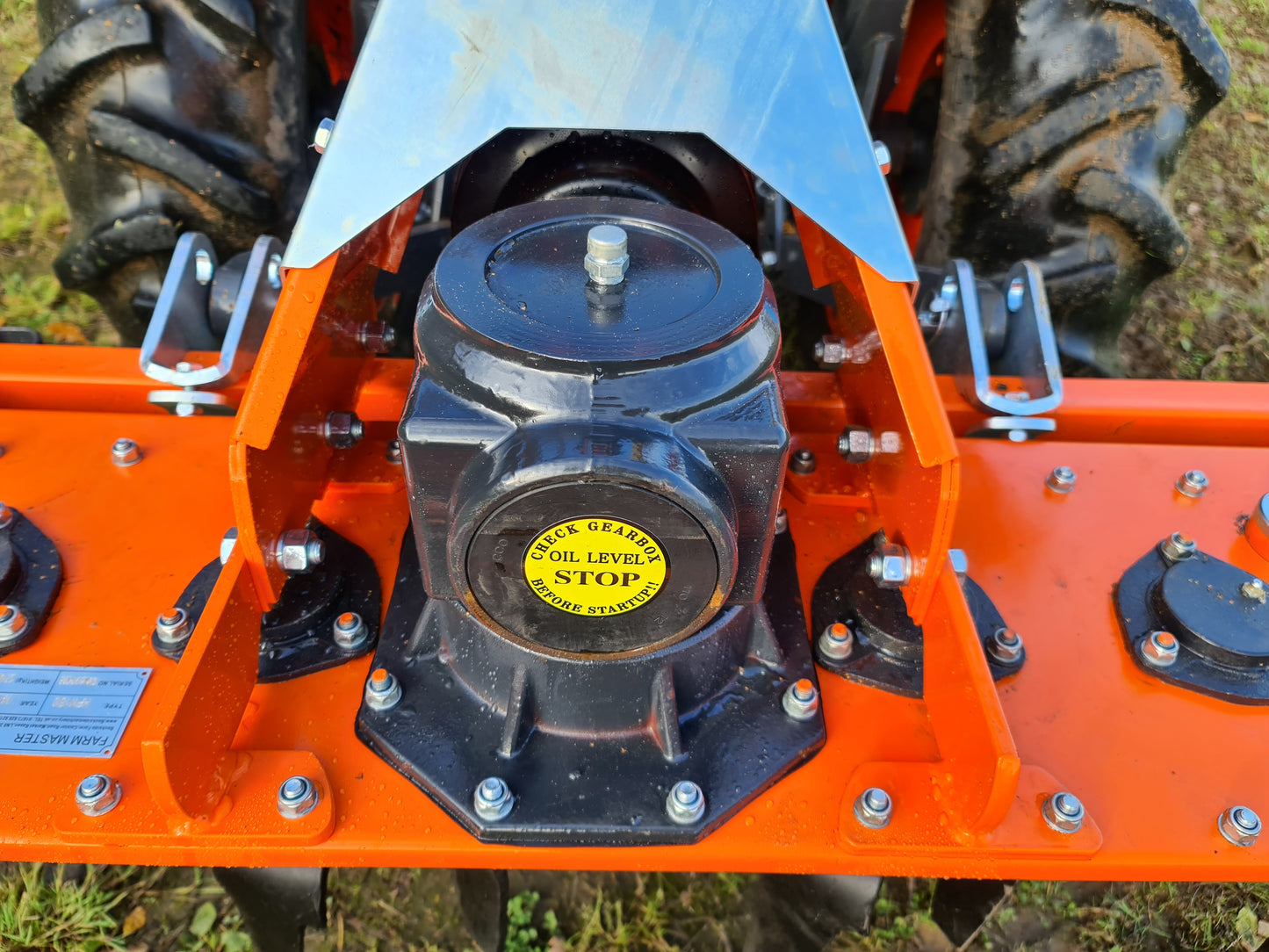

Sturdy Heavy-duty gearbox.
Low maintenance and durable.
Including heat-Treated and ultra-Hardened blade holder

Tail Lift Delivery: Ideal for locations without unloading equipment, as the tail lift allows safe ground-level delivery.

Warranty: All FarmMaster attachments come with a two year warranty for peace of mind. For more details, call us on 01673 828965.

About the Brand

FarmMaster® is one of the worlds fastest growing agricultural brands, connecting manufacturers from around the world to produce the best quality compact tractor and ATV attachments.

Founded in the United Kingdom, FarmMaster has built a loyal customer base by consistently providing affordable, innovative and high-quality products, designed for farmers, smallholders and groundkeepers.

Also featuring the popular Goliath®, LandLugger® and FarmMaster Pro® ranges, FarmMaster has the tractor or ATV attachment you need.

With manufacturing and parts suppliers in the U.K, Italy and China, every FarmMaster attachment comes with a two year warranty, with ongoing technical support for peace of mind.

Beckside Machinery is an official supplier of FarmMaster® attachments and we hold a wide variety of products in stock.

Delivery

Our attachments are delivered on a pallet via a third-party courier. Delivered by a tail-lift truck to avoid the requirement of a fork-lift. Shipping costs are based on pallet size and are calculated at checkout. Please contact us on 01673 828965 for more information.

Contact Us

For more information or to place your order, please call the Beckside Machinery team on 01673 828965.
