Why PTO Shaft Setup Matters on Compact Tractor Attachments

PTO-driven tractor attachments are some of the most useful tools you can run behind a compact tractor. Flail mowers, stone buriers, rotavators, wood chippers, finishing mowers, hedge cutters and other compact tractor attachments all rely on the tractor’s PTO to transfer power from the tractor to the implement.

However, one detail is often overlooked before first use: the PTO shaft must be the correct length for the tractor and attachment combination.

This matters because PTO shafts are not always supplied ready to fit every tractor. Compact tractors vary in size, linkage geometry and distance between the tractor PTO and the implement gearbox. If the shaft is too long, too short, badly guarded or incorrectly fitted, it can cause mechanical damage and create serious safety risks. The HSE describes PTOs and PTO drive shafts as dangerous if used or guarded incorrectly, with preventable accidents still causing serious injuries.

Why PTO shafts are not always ready to use

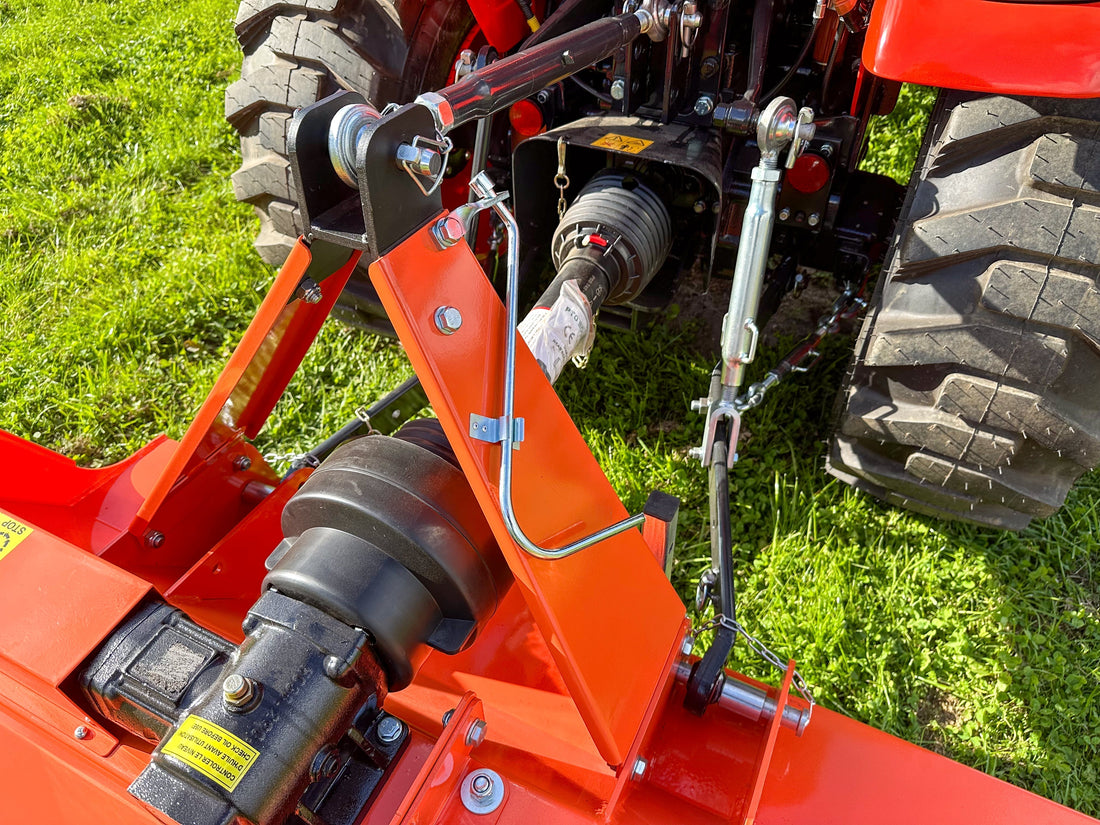

A PTO shaft connects the tractor’s PTO output to the input shaft on the attachment. Although many tractor attachments are supplied with a PTO shaft, that does not mean the shaft will be the correct length for every tractor.

This is especially important with compact tractors because there can be a wide variation between models. Two tractors with similar horsepower may still have different linkage positions, PTO heights and working distances from the attachment.

That is why a PTO shaft should be measured against the actual tractor and implement combination before use. If an attachment is delivered directly to the customer, the supplier may not have access to the tractor, which means final PTO shaft setup must be completed before the machine is used.

What happens if a PTO shaft is too long?

If a PTO shaft is too long, it may bottom out when the tractor linkage is raised or when the implement moves closer to the tractor. This can create end pressure through the shaft and into the implement gearbox or tractor PTO. In simple terms, the shaft runs out of space.

When this happens, the force has to go somewhere. It can damage the implement gearbox, PTO shaft, universal joints, clutch or even parts of the tractor. PTO suppliers warn that an over-length shaft can damage the tractor PTO or implement gearbox, and this type of damage is usually not considered a warranty issue because it is caused by incorrect setup.

This is one of the most important points for owners to understand. A PTO shaft may appear to fit when the machine is parked, but it still needs to be checked through the working range of the linkage.

What happens if a PTO shaft is too short?

A PTO shaft that is too short can also cause problems. If there is not enough overlap between the two telescopic halves of the shaft, it may separate or run with poor engagement when the implement is lowered, raised or turned. That can damage the PTO shaft and create a dangerous situation.

The aim is to have a shaft that is short enough not to bottom out, but long enough to maintain safe overlap during normal operation. This is why measuring correctly matters.

Basic steps for checking PTO shaft length

Always follow the manual supplied with your tractor attachment and the PTO shaft manufacturer’s instructions. The exact process can vary between shaft types, but the general principle is usually the same.

A basic approach is:

Attach the implement to the tractor without connecting the PTO shaft: Mount the attachment securely on the three-point linkage or hitch as instructed.

Find the shortest working distance: Carefully raise and lower the implement to identify where the distance between the tractor PTO and implement input shaft is shortest. Many guides advise checking the shaft length with the implement in different linkage positions, because the distance can change as the machine moves.

Separate the PTO shaft halves: Offer each half up to the tractor and implement connection points so you can assess how much needs removing.

Mark the shaft and guard carefully: If shortening is required, both the metal shaft sections and plastic guards normally need to be cut by the same amount from each side.

Cut, deburr and clean the shaft: After cutting, remove sharp edges and clean away filings. This helps the telescopic sections move freely.

Grease and reassemble: The shaft should slide smoothly after shortening. If the telescopic sections bind, the shaft can still cause damage even if it appears to be the correct length.

Check the movement before use: Refit the PTO shaft and slowly raise and lower the attachment with the tractor switched off to confirm the shaft has enough movement and does not bottom out.

This is a simplified overview, not a replacement for the manufacturer’s instructions. If anything feels unclear, stop and ask for advice before running the machine.

PTO shaft guards are not optional

Correct length is only part of safe PTO setup. The shaft must also be properly guarded.

PTO guards should cover the rotating shaft and be correctly maintained. HSE guidance states that PTO shafts should be fitted with suitable guards that are properly used and maintained, and that unguarded or inadequately guarded PTO shafts remain a serious source of accidents.

Before using PTO-driven compact tractor attachments, check that:

• The PTO guard is fitted and undamaged
• The guard rotates freely around the shaft
• Guard chains or restraining devices are fitted where required
• The tractor PTO shield is in place
• The implement guard is fitted correctly
• No clothing, rope, wire or loose material can contact the shaft
• Never operate a PTO shaft with missing or damaged guards.

Why this matters for compact tractor attachments

Many compact tractor attachments are supplied for use with a wide range of tractors. That flexibility is useful, but it also means setup matters.

For example, a tractor flail mower, verge flail mower or tractor hedge cutter may be compatible with compact tractors of a certain horsepower range, but the PTO shaft still needs to be matched to the individual tractor. Compatibility is not just about horsepower. It also includes linkage position, PTO shaft angle, working height and available clearance.

This is especially relevant when attachments are delivered rather than fitted in person. In those cases, the owner must understand that the PTO shaft may need measuring and cutting before use.

Common mistakes to avoid

The most common mistakes are simple, but they can be expensive.

Avoid:

• Assuming the PTO shaft is ready to use straight out of the crate
• Connecting the shaft without checking the shortest linkage position
• Cutting only the plastic guard and not the internal shaft
• Cutting one side but not the other
• Leaving burrs or metal filings inside the shaft
• Running the machine with missing guards
• Raising the linkage too high while the PTO is engaged
• Using a shaft that does not slide freely

The safest approach is to take time before first use. A few careful checks can prevent gearbox damage, broken shafts and unsafe operation.

Who is responsible for PTO shaft setup?

Where a dealer fits an attachment to a tractor, PTO shaft measurement can often form part of the pre-delivery process. However, this is not always possible. If the attachment is shipped directly or the tractor is not present, the shaft cannot be cut accurately in advance.

In those cases, the customer or operator must ensure the PTO shaft is correctly measured, shortened if required and checked before use.

This is not unusual. It is a normal part of setting up many PTO-driven tractor attachments. What matters is that it is done before the machine is put to work.

Final thoughts

PTO-driven tractor attachments are extremely useful, but they need to be set up correctly. A PTO shaft that is too long can damage the gearbox or tractor. A shaft that is too short can separate or run unsafely. A poorly guarded shaft can create serious injury risks.

Before using any PTO-driven compact tractor attachment, take time to check the shaft length, guarding and movement through the working range. If the shaft needs shortening, follow the manufacturer’s instructions carefully or ask for guidance before operating the machine.
