*Price Ex. VAT and Delivery
**Please contact us for a delivery price.
Click here for brochure with full specifications.
Compact tractor for sale with the highest user value. With a 5-years warranty, the Kioti Tractor CK3530 features:
- Premium diesel engine
- Mid PTO (opt.)
- Commonrail + dpf on CK4030/5030
- Mechanical- or HST-transmission
- 3-point linkage
- Twin Pedal HST
- Tight turning radius
- Joystick for frontloader
- Power steering
- Fourwheel drive
- Comfortable driving seat
- Foldable ROPS
- Cabin version with A/C
- Illuminated dashboard
- Road lights
- Frontlinkage (opt.)
- Heated rear screen on Cabin version
- Front PTO (opt.)
- Auto-PTO
- Cruise control
- Linked pedal
Standard Equipment
- Power Steering
- Adjustable Seat
- Cup Holder
- Rear PTO
- Center Marker
- Headlights
- Signal Lamp
- Tail Lamp
- Parking Brake
- Foldable ROPS
- Joystick Valve
- Wet Multi Disc Brakes
- Mechanical 4WD
- 3-Point Control Lever
- Flip Up PTO Cover
- Illuminated Dashboard
Option Equipment
- Mid PTO Kit
- Rear Working Light Kit
- Dual Remote Valves (2 Spring Valves)
- Dual Remote Valves (1 Detent Valve & 1 Spring Valve)
- Dual Remote Valves (2 Detent Valves)
- Sunshade
- Clevis Type Drawbar Kit
- Tool Box Kit
- Side View Mirror Kit
- Telescopic Lower Link Kit
- Fuel Heater Kit
- Dual Air Cleaner Element
- Deck Mat
- Lift Rod Kit
- Armrest Kit
- Horn
- Field Option Cab
- HST Cruise Kit (HST models only)
- HST Link Kit (HST models only)
Instrument Panel
- Digital Hour Meter
- Coolant Temperature Gauge
- Electrical Tachometer
- Fuel Gauge
- Engine Oil Pressure Light
- High Beam, Emergency Flasher, Direction Indicators
- Glow Plug Light
- Alternator Light
Beckside Machinery is an official Kioti Tractor Dealer. Call us on 01673 828 965 for more information.

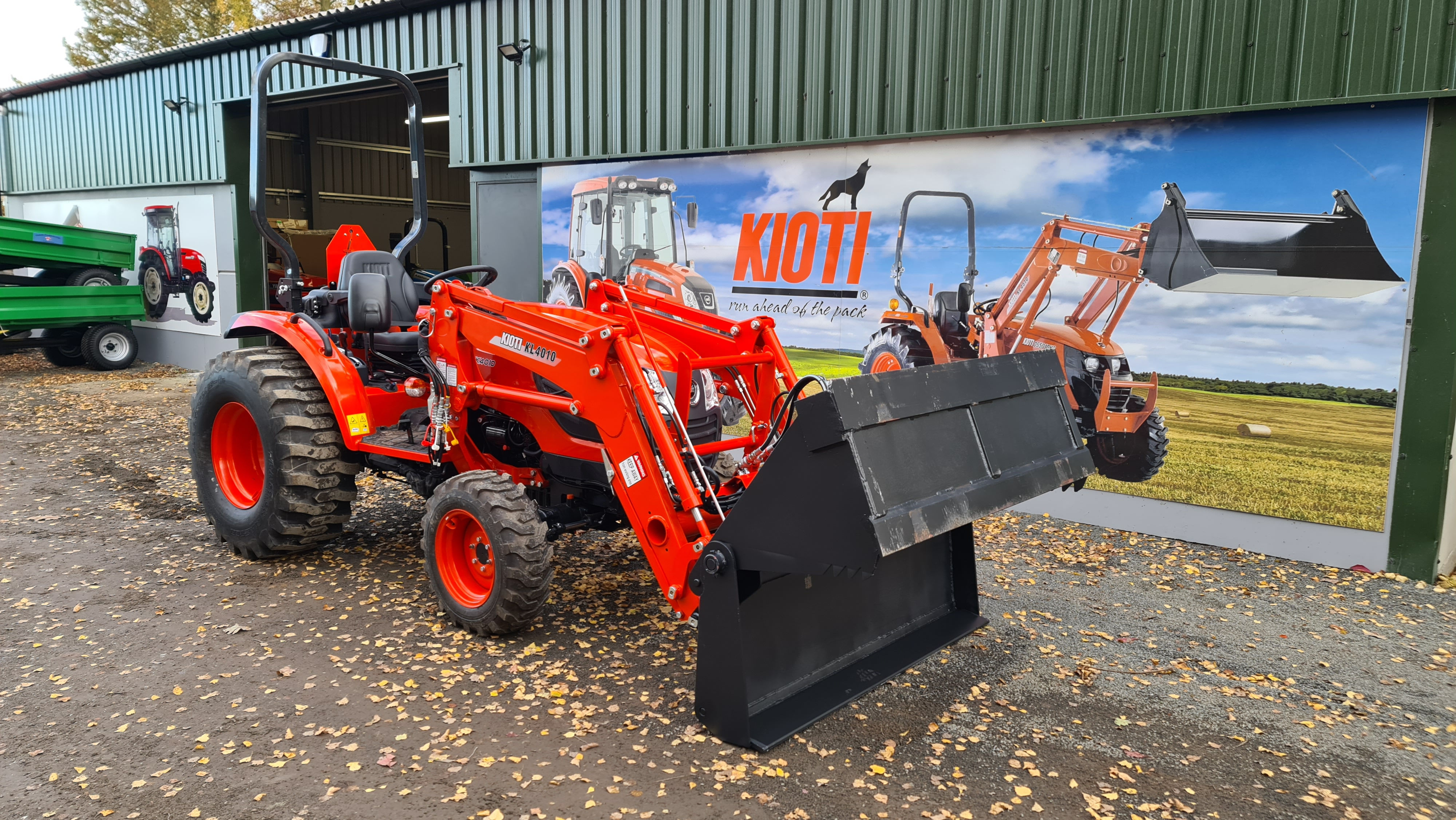

CK3530 Kioti Compact Tractor For Sale+ 4 in 1 Bucket
£24,995.00Price
Main Features
- Engine Gross Power: 34.9 hp (26 kW)
- PTO Type: Live
- Transmission Type: Hydrostatic
- Shuttle: Dry Single Stage
- Diesel engine with Daedong ECO Technology
- Dual Pedal HST
- Power Steering
- Foldable ROPS
- High Capacity Hydraulic Pump
- Single Lever Joystick
Specifications
Engine
Engine Model 3H-TH4A Engine Gross Power 34.9 hp (26 kW) Rated Speed 2,600 rpm No. of Cylinders 3 Fuel Type Diesel Aspiration Natural Displacement 111.4 cu. in. (1,826 cc) Fuel Tank Capacity 9 gal. (34 L) Transmission
Transmission Type HST Transmission Main Gear Manual No. of Travel Speeds - Forward / Reverse Infinite, 3 Range Min. Travel Speed of Forward w/ Ag @ Engine rated speed 0 mph (0 km/h) Max. Travel Speed of Forward w/ Ag @ Engine rated speed 14.85 mph (23.91 km/h) Power Take-Off (PTO)
PTO Type Trans Live PTO Power 30.8 hp (22.9 kW) Rear PTO Speeds (1st) 540 rpm Mid PTO Speeds 2,000 rpm (Optional) Brakes and Clutch
Brakes Wet Multi Disc Clutch Dry Single Stage Dimensions w/ AG Tire
Length w/ 3-point hitch 120.9 in. (3,070 mm) Width 54.5 in. (1,385 mm) Height from Top of ROPS 99.2 in. (2,520 mm) Wheelbase 65.7 in. (1,670 mm) Ground Clearance 13.4 in. (340 mm) Front Tread Ag Tires - Min 48.2 in (1,225 mm) Rear Tread Ag Tires - Min 47.6 in. (1,210 mm) Min. Turning Radius w/ Brake 8.0 ft. (2.4 m) Hydraulics
Total Pump Flow 11.7 gpm (44.4 L/min) 3-Point Hitch
Standard Category Category 1 Lift Capacity, 24" aft of hitch 1,631 lbs. (740 kg) Control Type Position Weight
Weight w/ Ag Tires w/ ROPS 2,734 lbs. (1,240 kg) Fitted With KL4010 Tractor Loader
Standard Features
- Low profile design maximizes operator's visibility.
- Designed to be quickly and easily attached and detached.
- A built-in parking stand on the front end loader provides quick and easy connection.
- Mid-mount style frame for engine accessibility.
- Bucket level indicator is standard.
- Color complements KIOTI tractor.
Specifications
Maximum Lift Height to pivot pin 98.4 in. (2,500 mm) Clearance w/ Attachment Level 93 in. (2,360 mm) Clearance w/ Attachment Dumped (45º) 79.1 in. (2,010 mm) Reach at Maximum Height 27.2 in. (690 mm) Maximum Dump Angle 48º Reach w/ Attachment on Ground 62.2 in. (1,580 mm) Maximum Rollback Angle 28º Digging Depth Below Grade 5.3 in. (135 mm) Overall Height in Carry Position 49.6 in. (1,260 mm) Lift Capacity to Full Height at Pivot Pins 1,835 lbs. (832 kg) Breakout Force at Ground Line 3,464 lbs. (1,571 kg) Relief Valve Setting (Loader Control Valve) 2,560 psi Rated Flow (Tractor Hydraulic System) 7.1 gpm Bucket Size 60 in. or 66 in. Weight (with Bucket) 840 lbs. (381 kg) Depth of Attachment (to back of inner shell) 19.9 in. (505 mm) Height of Attachment 20.7 in. (526 mm) Length of Attachment (to pivot pin) 26.9 in. (682 mm) Raise Boom (2,600 rpm) 3.9 seconds Lower Boom (2,600 rpm) 2.3 seconds Dump Bucket (2,600 rpm) 3.2 seconds Retract Bucket (2,600 rpm) 1.9 seconds Loader Specifications MODEL KL4010
- A Maximum Lift Height 2,500 mm
- B Clearance with Attachment Level 2,234 mm
- C Clearance with Attachment Dumped 1,839 mm
- D Reach at Maximum Lift Height(45º) 321 mm
- E Maximum Dump Angle 55.5°
- F Reach With Attachment on Ground 1,660 mm
- G Attachment Rollback Angle 41.5°
- H Digging Depth Below Grade 124 mm
- J Overall Height in Carry Position 1,345 mm
- L Depth of Attachment (to back of inner shell) 485 mm
- M Height of Attachment 501 mm
- N Depth of Attachment (to pivot pin) 665 mm
- Lift Capacity to Full Height at Pivot Pins 766 kgf
- Breakout Force at Pivot Pins 1,162 kgf
- Lift Cylinder ø50×524ST mm
- Bucket Cylinder ø50×395ST mm
- Attachment used for specification 1,524/1,676 mm
- Bucket Weight 102/108 kg Approx.
- Weight (without Bucket) 310 kg
- Bucket Capacity 0.2(0.27)/0.21(0.29) m
