5025R Branson Tractors with Tractor Loader
Price Ex. VAT and Delivery

Product Details
Quick Specs:
  • Power: 47HP
  • Transmission: Mechanical synchro shuttle shift
  • Platform: ROPS
  • Auxillary double acting hydraullic services: 2 rear, 2 mid
  • PTO speeds: 540/750
  • 3 point linkage lift at ball ends: 1500kg

  • Powered by eco-friendly original Branson Engine for longer life and advanced heat dissipation.
  • 5025R: 12F / 12R Synchronized Transmission enables the driver to change speeds "on the go" without bringing the Branson tractor to a complete stop. Forward / Reverse shifting is done quickly with Synchro Shuttle.
  • 2 speed independent PTO is standard on 5025 Branson Tractors, which allows the driver to switch to approximately 584 or 791rpm, to operate compact tractor attachments better and with greater fuel efficiency.
  • 5025 Branson Tractors have 12 gear or 24 gears if you count reverse too- in a 4-speed, three-range transmission with full synchromesh, including the shuttle which is fabulous to have when doing front-end work or back-and-forth mowing.
  • 1,500kg rear hitch lift capacity (Standard CAT I 3point Hitch) gives all the lifting power you need for compact tractors of this size.
  • Fitted with two hydraulic pumps: One for the hydrostatic steering and another for the remainder of the hydraulics. This ensures that there is sufficient pressure in the line for all functions, meaning safer controlled steering and smooth, robust bucket operation.
  • Branson Tractors bodywork is more durable than comparable rivals due to the bonnet and guards are powder-coated steel, not painted or coloured fibreglass.

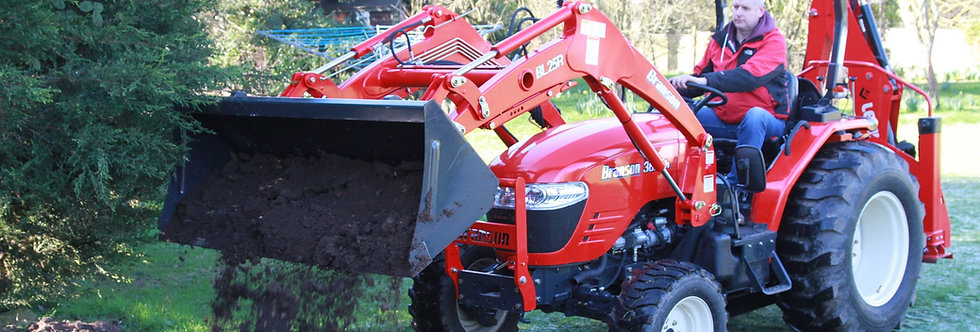

Fitted with a BL25 Tractor Loader
BL25 Tractor Loader comes finished with standard lift or level lift arm and is suitable for the Branson Tractor 25 series range. This tractor loader incorporates a 1.7m bucket and a Euro 8 quick hitch type bucket hitch. The tractor loader itself is detachable within a few minutes and has its own integral stand to store the tractor loader when it's not in use.

To speak with us about our Branson Tractor package deals and for the latest Branson Tractor prices, please call Beckside Machinery on 01673 828 965.

5025R Branson Tractors with Tractor Loader

£22,495.00Price

  • Branson Tractors UK series 5025R Specifications

    Engine HP (kW) @ Rated RPM: 47 (35) @ 2600

    PTO HP @ Rated RPM: 42

    Drive System: 4 Wheel Drive

    Max.Forward Speed (Km@RPM): 33.1 @ 2850

    Min.Forward Speed (Km@RPM): 1.835 @ 2850

    Engine

    • Make: A2300N2
    • Type: Vertical 4 Cycle, Water Cooled, Diesel
    • Displacement (cc): 2286
    • Aspiration: Natural
    • Combustion System: Swirl Chamber

    Air Cleaner: Dry Element

    Transmission

    • Main Shift: SynchroMesh
    • Reverse Method: Synchro Shuttle
    • Gear Shift: 12F/12R
    • On-the-Go Shifting (Yes/ No/ Partial): Partial
    • Clutch: Dry Single Plate

    Brake: Wet, Multidisc

    Fuel System: 35

    PTO: Rear PTO: 584 / 1088 RPM(Independent Type, CW, 6 Spline shaft)Front PTO: Attachable

    Hydraulics

    • Main (lpm): 39
    • Steering lpm(L/min): 19

    SCV: 4/ 4 (Detent)

    3-Point Hitch

    • Hitch Category: CAT I
    • Hitch Lift Capacity on Ball Ends (kg): 1500
    • Hitch Lift Capacity Measured 24” (610mm) Behind Ball Ends (kg): 1100
    • Control Type: Draft Position

    Steering

    • Category: Power Assisted Hydrostatic
    • Turning Degree: 56°
    • Adjustment: 3-Stage Tilt

    Electrics: 12V / 50Ah

    Tires: F : 9.5-16 / R : 13.6-26IND.: 10-16.5, 17.5L x 24

    Dimensions

    • Overall Length (mm) (Front weight - 3PL): 3511 (With Front Weight)
    • Overall Width (mm): 2500
    • Overall Height (mm): 2500
    • Wheelbase: 1806
    • Ground Clearance (mm): 399
    • Weight (kg): 1742

    Options: Front Weight (17kg x 6)

  • BL25 Tractor Loader Specifications

    • LIFT TYPE : Standard Lift or Level Lift
    • HITCH TYPE : Euro 8
    • STD BUCKET (inc) : 1.7m
    • LIFT CAPACITY AT GROUND LEVEL : 1602Kg
    • LIFT CAPACITY AT MAX HEIGHT : 948Kg

  • Loader Specifications

     Click here for Branson Tractor Loader specifications

  • Merger with TYM Tractors

    TYM has held 30% of Branson tractor shares since 2016. TYM now owns the entire Branson Tractor and Diesel Engine facility in South Korea after purchasing the remaining 70% of the shares last year.



    TYM has decided to merge the two brands under the TYM brand name starting in January 2023. Future tractors will be badged and sold as TYM tractors with the Branson name being phased out.



    As of January 2023, the name will change to TYM Tractors UK.
